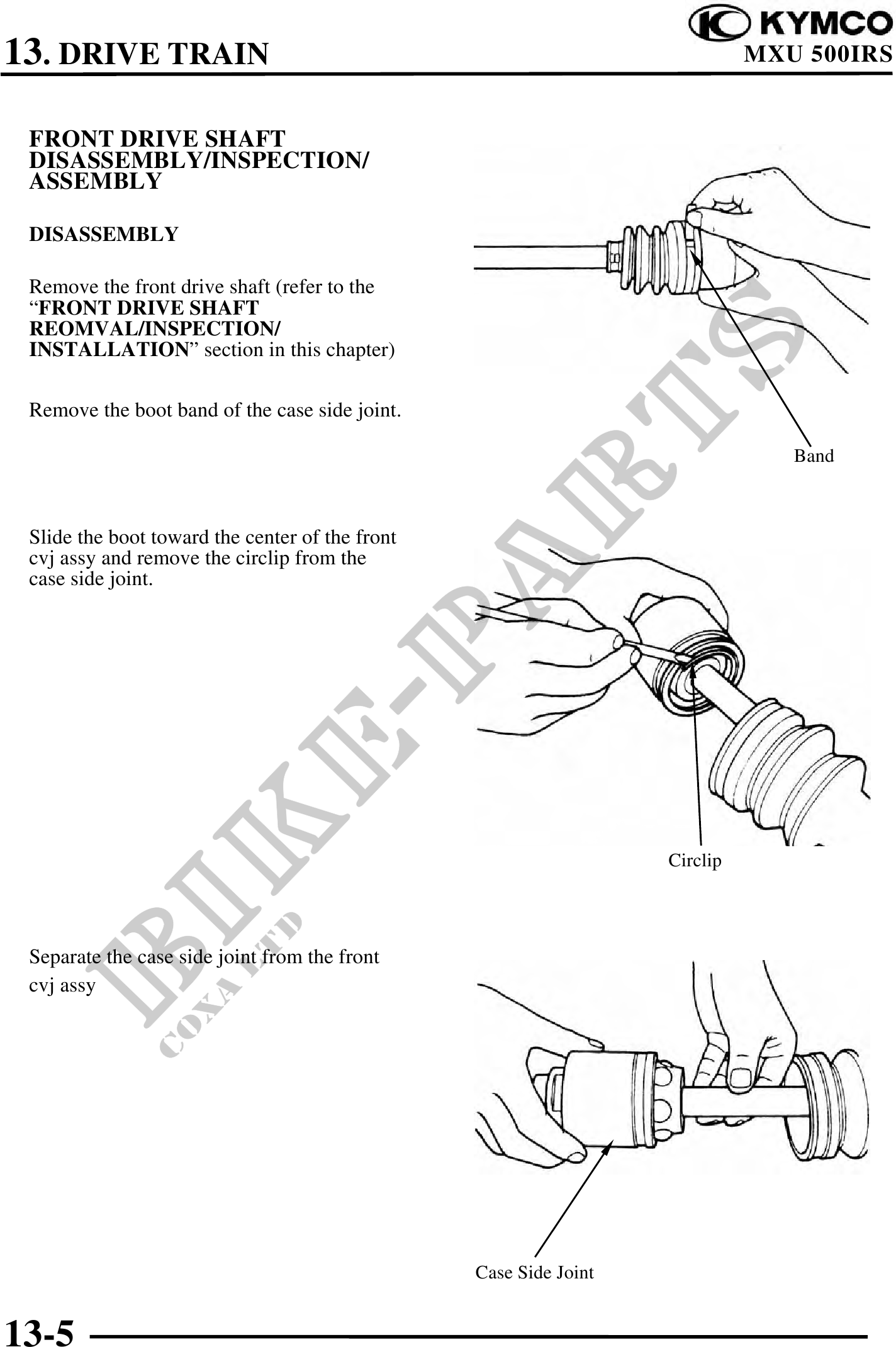

          13. DRIVE TRAIN                                                              MXU 500IRS


 FRONT DRIVE SHAFT
 DISASSEMBLY/INSPECTION/
 ASSEMBLY

 DISASSEMBLY

 Remove the front drive shaft (refer to the
 "FRONT DRIVE SHAFT
 REOMVAL/INSPECTION/
 INSTALLATION" section in this chapter)

 Remove the boot band of the case side joint.

                                                                                Band



 Slide the boot toward the center of the front
 cvj assy and remove the circlip from the
 case side joint.




                                                                   Circlip




 Separate the case side joint from the front
 cvj assy




                                                 Case Side Joint


13-5
