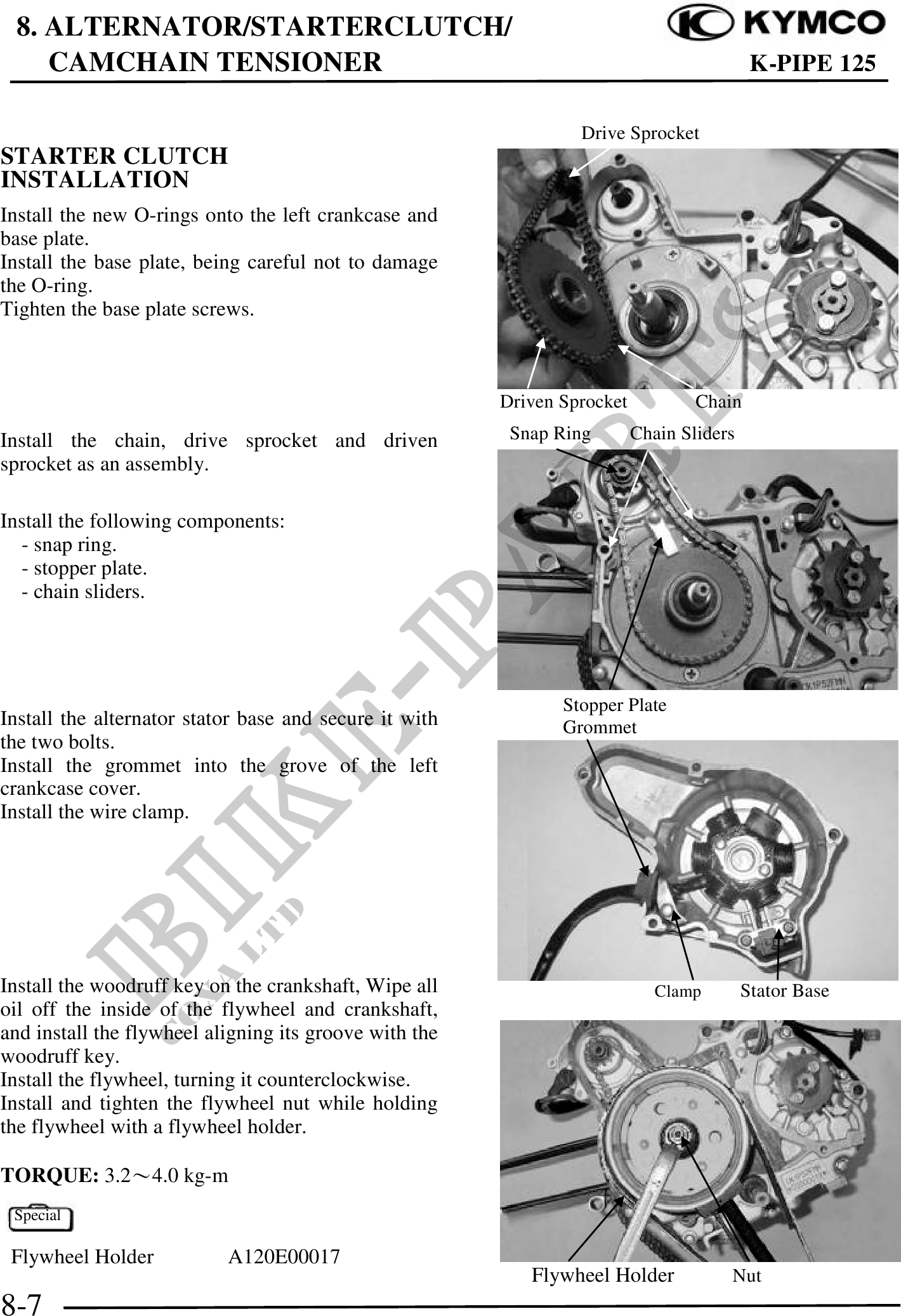

8. ALTERNATOR/STARTERCLUTCH/ CAMCHAIN TENSIONER K-PIPE 125 Drive Sprocket STARTER CLUTCH INSTALLATION Install the new O-rings onto the left crankcase and base plate. Install the base plate, being careful not to damage the O-ring. Tighten the base plate screws. Driven Sprocket Chain Install the chain, drive sprocket and driven Snap Ring Chain Sliders sprocket as an assembly. Install the following components: - snap ring. - stopper plate. - chain sliders. Stopper Plate Install the alternator stator base and secure it with Grommet the two bolts. Install the grommet into the grove of the left crankcase cover. Install the wire clamp. Install the woodruff key on the crankshaft, Wipe all Clamp Stator Base oil off the inside of the flywheel and crankshaft, and install the flywheel aligning its groove with the woodruff key. Install the flywheel, turning it counterclockwise. Install and tighten the flywheel nut while holding the flywheel with a flywheel holder. TORQUE: 3.24.0 kg-m Special Flywheel Holder A120E00017 Flywheel Holder Nut 8-7
