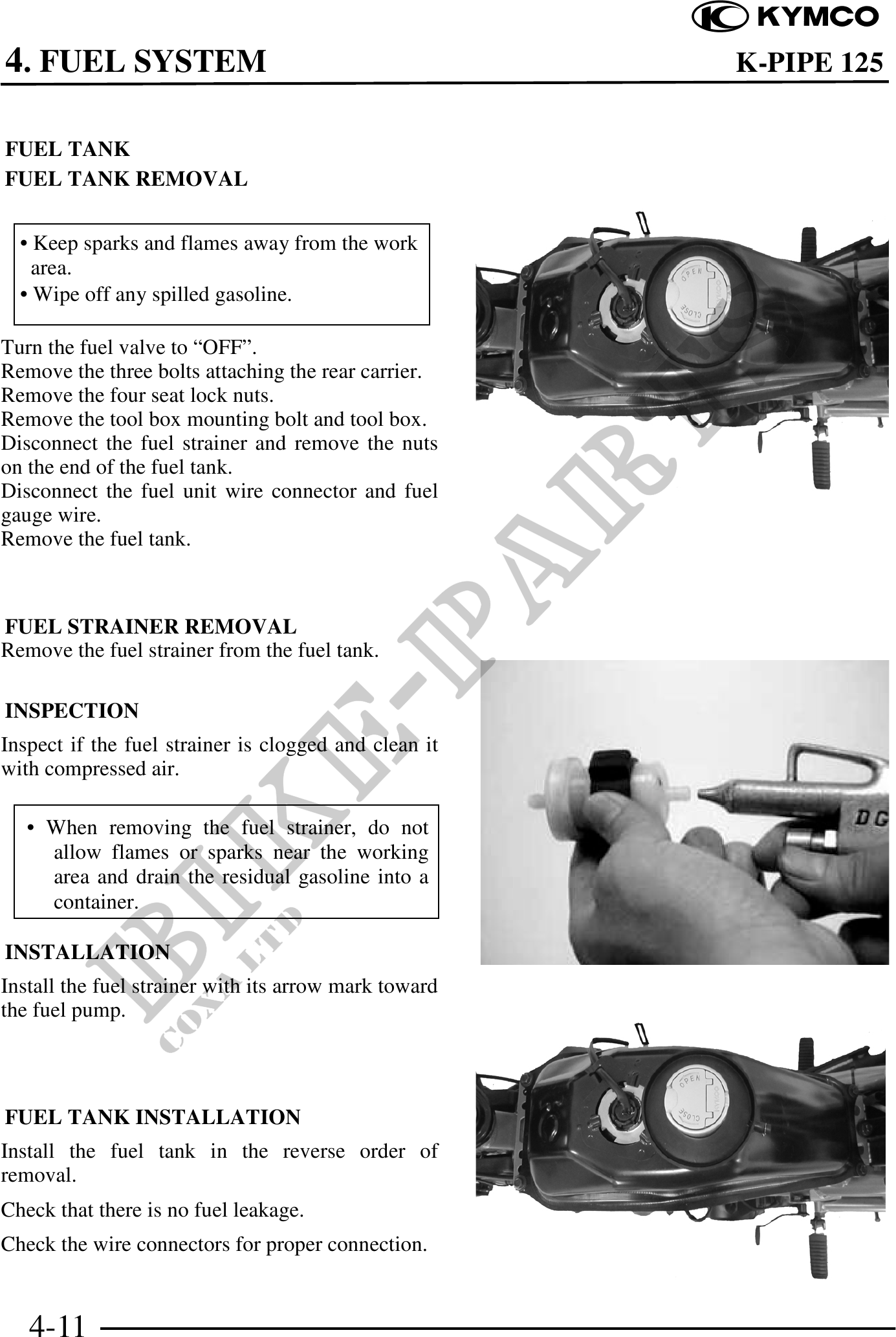

4. FUEL SYSTEM K-PIPE 125 FUEL TANK FUEL TANK REMOVAL · Keep sparks and flames away from the work area. · Wipe off any spilled gasoline. Turn the fuel valve to "OFF". Remove the three bolts attaching the rear carrier. Remove the four seat lock nuts. Remove the tool box mounting bolt and tool box. Disconnect the fuel strainer and remove the nuts on the end of the fuel tank. Disconnect the fuel unit wire connector and fuel gauge wire. Remove the fuel tank. FUEL STRAINER REMOVAL Remove the fuel strainer from the fuel tank. INSPECTION Inspect if the fuel strainer is clogged and clean it with compressed air. · When removing the fuel strainer, do not allow flames or sparks near the working area and drain the residual gasoline into a container. INSTALLATION Install the fuel strainer with its arrow mark toward the fuel pump. FUEL TANK INSTALLATION Install the fuel tank in the reverse order of removal. Check that there is no fuel leakage. Check the wire connectors for proper connection. 4-11
