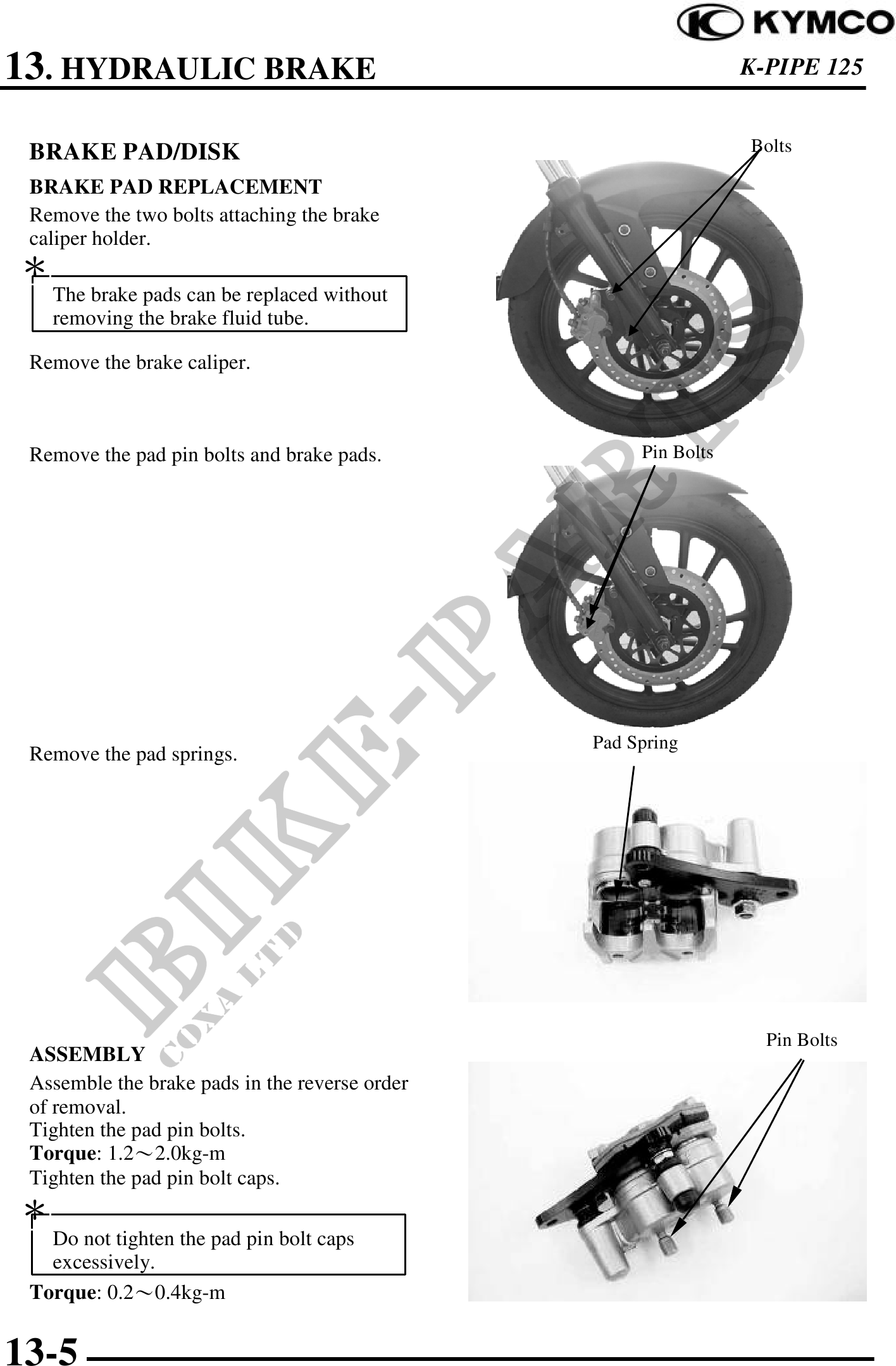

13. HYDRAULIC BRAKE K-PIPE 125 BRAKE PAD/DISK Bolts BRAKE PAD REPLACEMENT Remove the two bolts attaching the brake caliper holder. The brake pads can be replaced without removing the brake fluid tube. Remove the brake caliper. Remove the pad pin bolts and brake pads. Pin Bolts Pad Spring Remove the pad springs. Pin Bolts ASSEMBLY Assemble the brake pads in the reverse order of removal. Tighten the pad pin bolts. Torque: 1.22.0kg-m Tighten the pad pin bolt caps. Do not tighten the pad pin bolt caps excessively. Torque: 0.20.4kg-m 13-5
