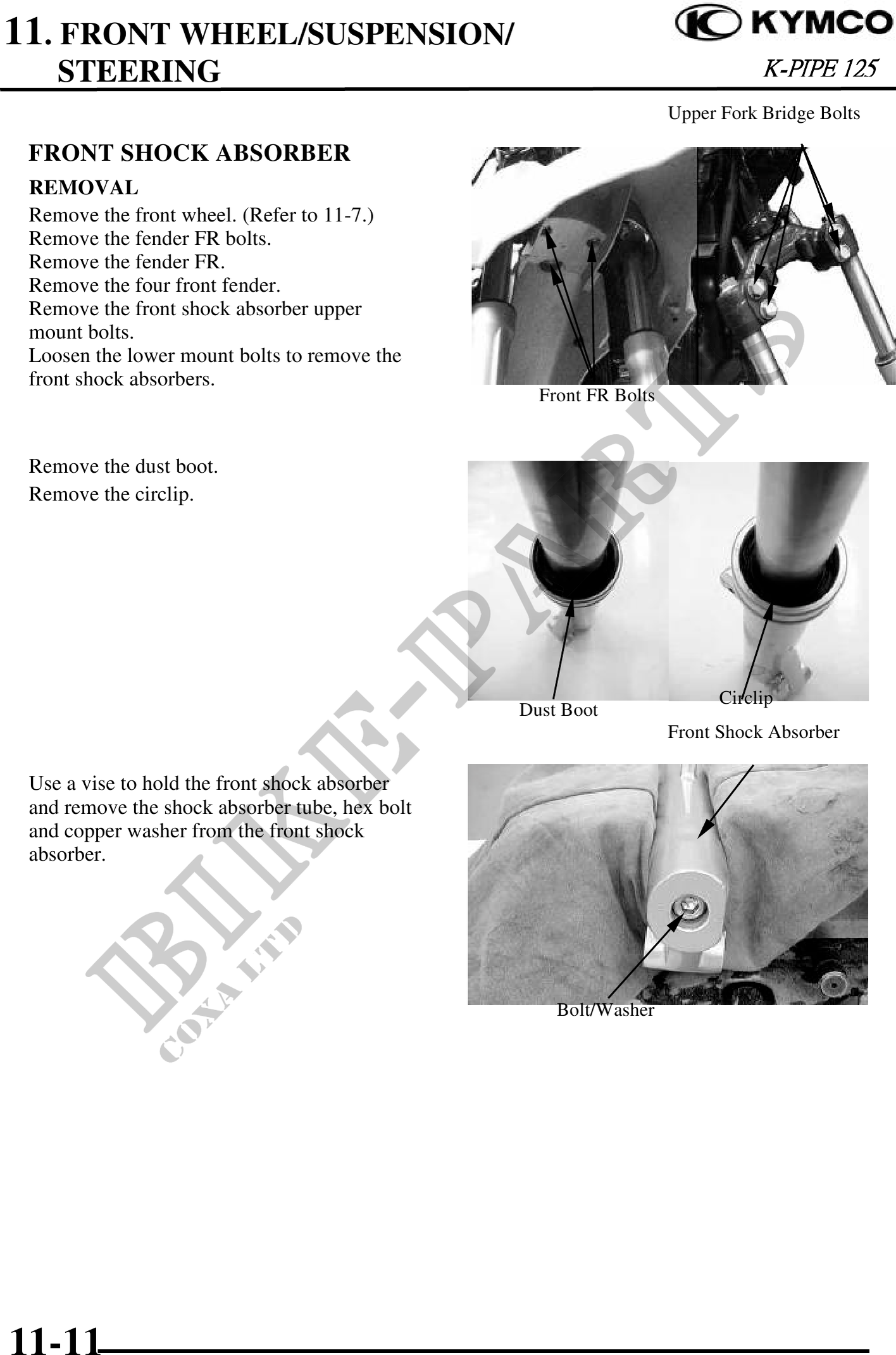

11. FRONT WHEEL/SUSPENSION/ STEERING K-PIPE 125 Upper Fork Bridge Bolts FRONT SHOCK ABSORBER REMOVAL Remove the front wheel. (Refer to 11-7.) Remove the fender FR bolts. Remove the fender FR. Remove the four front fender. Remove the front shock absorber upper mount bolts. Loosen the lower mount bolts to remove the front shock absorbers. Front FR Bolts Remove the dust boot. Remove the circlip. Circlip Dust Boot Front Shock Absorber Use a vise to hold the front shock absorber and remove the shock absorber tube, hex bolt and copper washer from the front shock absorber. Bolt/Washer 11-11
