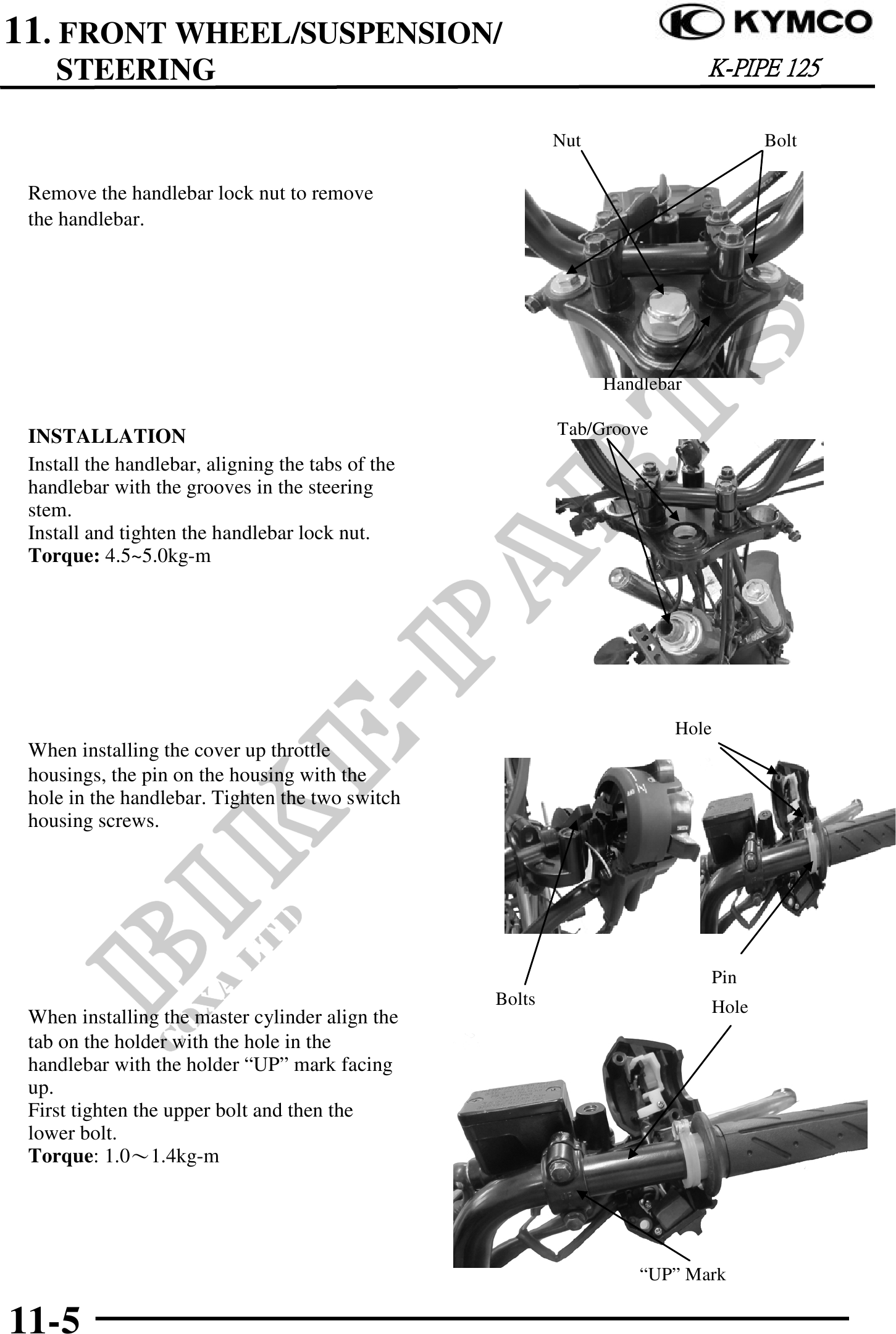

11. FRONT WHEEL/SUSPENSION/ STEERING K-PIPE 125 Nut Bolt Remove the handlebar lock nut to remove the handlebar. Handlebar INSTALLATION Tab/Groove Install the handlebar, aligning the tabs of the handlebar with the grooves in the steering stem. Install and tighten the handlebar lock nut. Torque: 4.5~5.0kg-m Hole When installing the cover up throttle housings, the pin on the housing with the hole in the handlebar. Tighten the two switch housing screws. Pin Bolts Hole When installing the master cylinder align the tab on the holder with the hole in the handlebar with the holder "UP" mark facing up. First tighten the upper bolt and then the lower bolt. Torque: 1.01.4kg-m "UP" Mark 11-5
