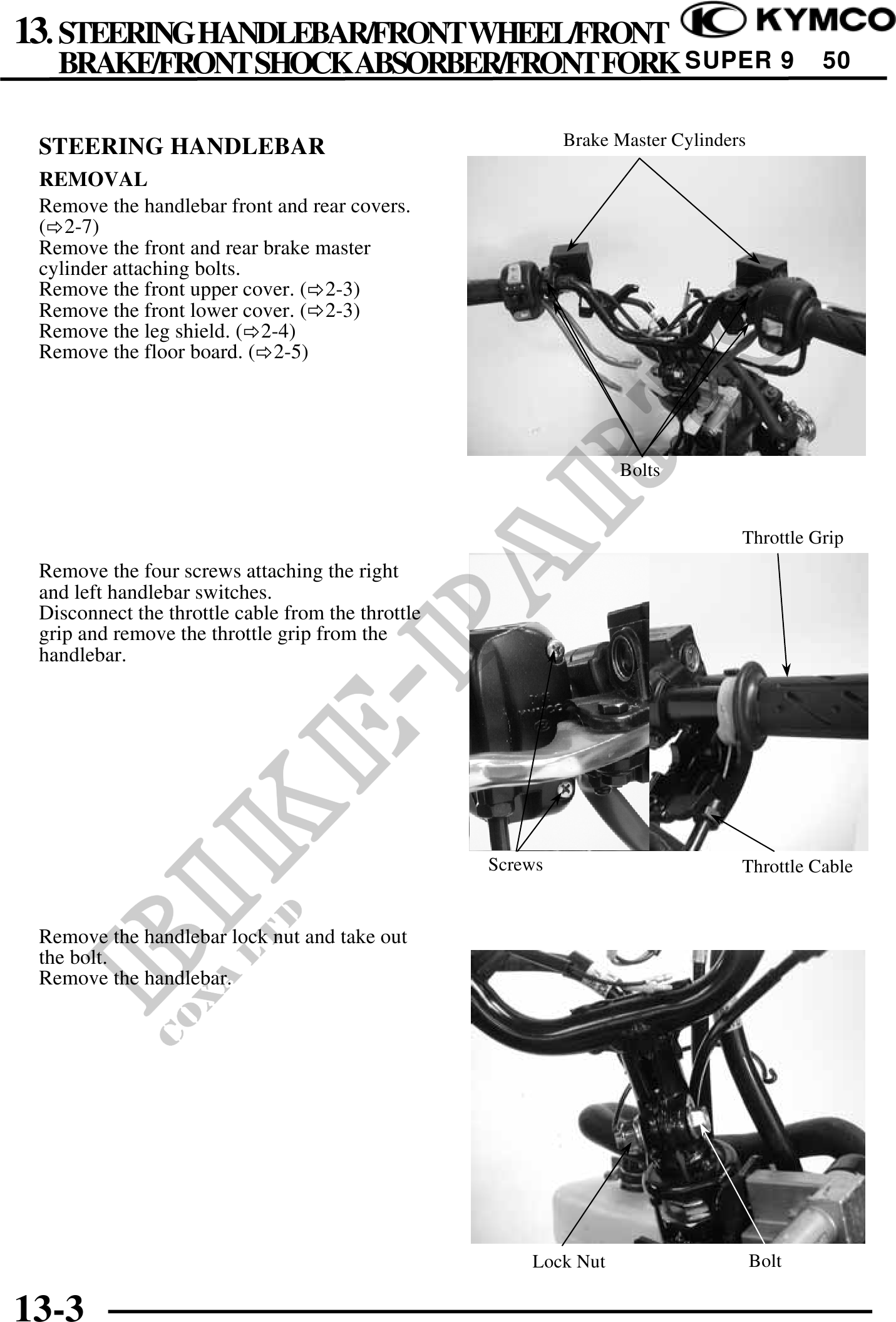

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50 STEERING HANDLEBAR Brake Master Cylinders REMOVAL Remove the handlebar front and rear covers. ( 2-7) Remove the front and rear brake master cylinder attaching bolts. Remove the front upper cover. ( 2-3) Remove the front lower cover. ( 2-3) Remove the leg shield. ( 2-4) Remove the floor board. ( 2-5) Bolts Throttle Grip Remove the four screws attaching the right and left handlebar switches. Disconnect the throttle cable from the throttle grip and remove the throttle grip from the handlebar. Screws Throttle Cable Remove the handlebar lock nut and take out the bolt. Remove the handlebar. Lock Nut Bolt 13-3
