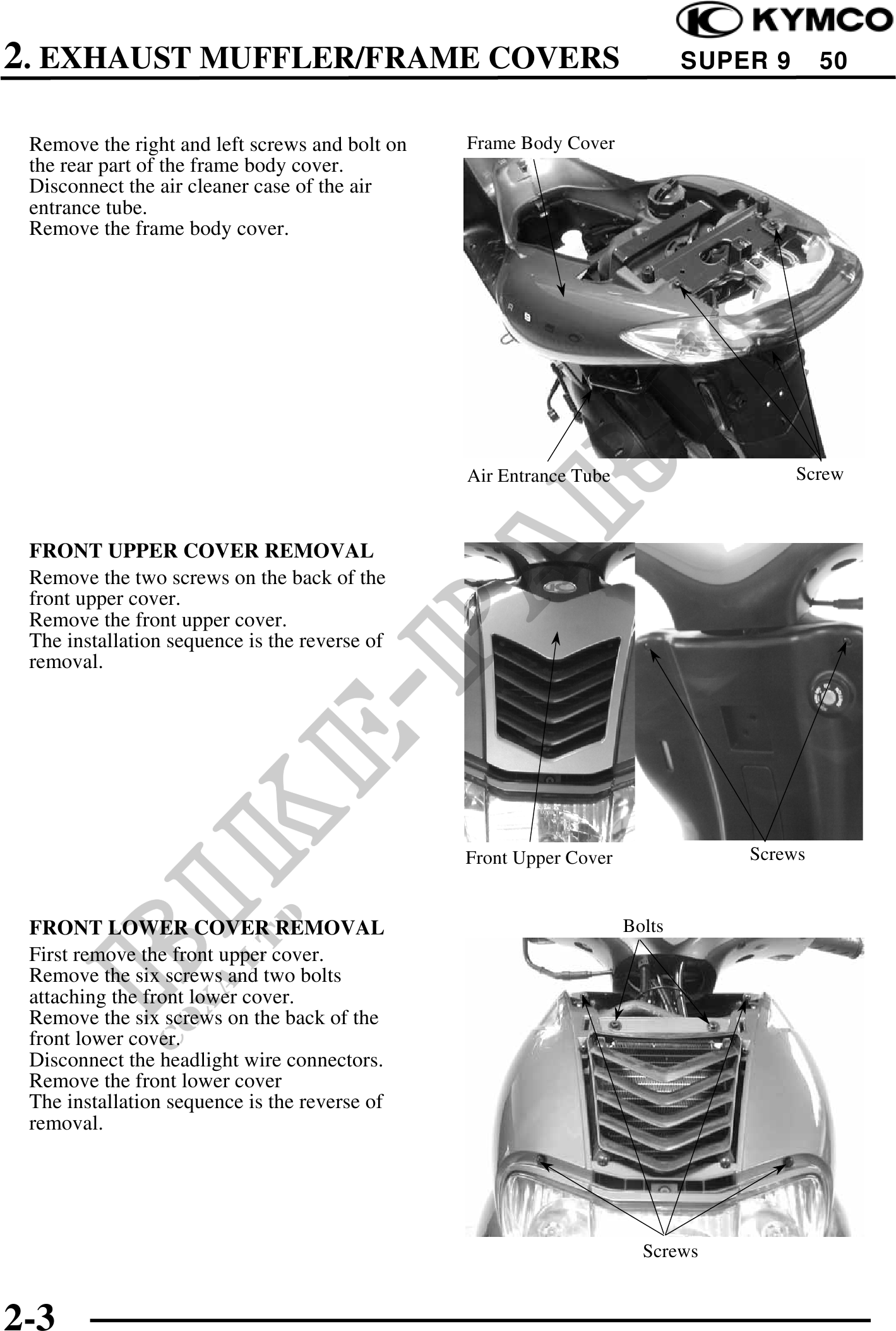

2. EXHAUST MUFFLER/FRAME COVERS SUPER 9 50 Remove the right and left screws and bolt on Frame Body Cover the rear part of the frame body cover. Disconnect the air cleaner case of the air entrance tube. Remove the frame body cover. Air Entrance Tube Screw FRONT UPPER COVER REMOVAL Remove the two screws on the back of the front upper cover. Remove the front upper cover. The installation sequence is the reverse of removal. Front Upper Cover Screws FRONT LOWER COVER REMOVAL Bolts First remove the front upper cover. Remove the six screws and two bolts attaching the front lower cover. Remove the six screws on the back of the front lower cover. Disconnect the headlight wire connectors. Remove the front lower cover The installation sequence is the reverse of removal. Screws 2-3
