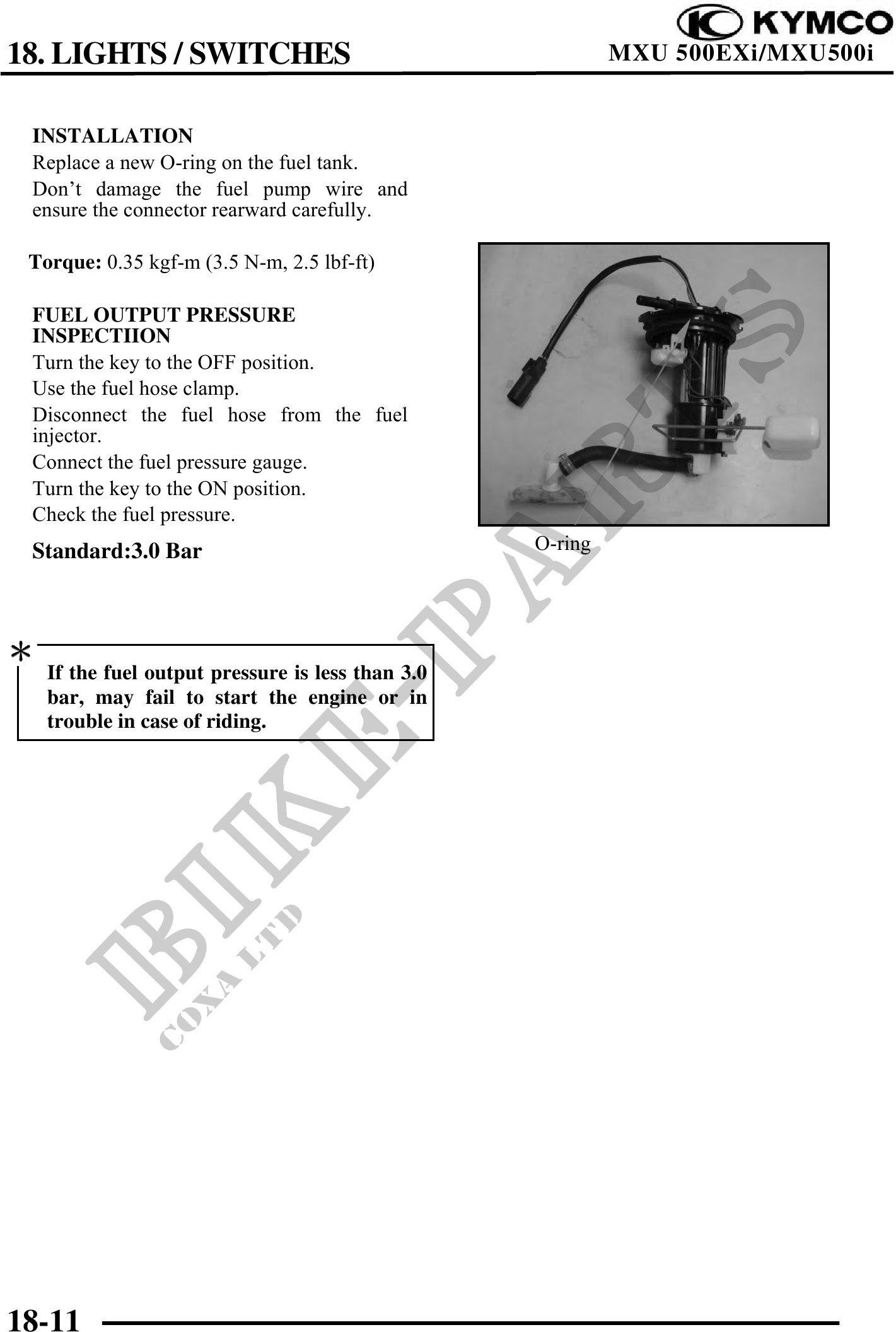

18. LIGHTS / SWITCHES MXU 500EXi/MXU500i
INSTALLATION
Replace a new O-ring on the fuel tank.
Don't damage the fuel pump wire and
ensure the connector rearward carefully.
Torque: 0.35 kgf-m (3.5 N-m, 2.5 lbf-ft)
FUEL OUTPUT PRESSURE
INSPECTIION
Turn the key to the OFF position.
Use the fuel hose clamp.
Disconnect the fuel hose from the fuel
injector.
Connect the fuel pressure gauge.
Turn the key to the ON position.
Check the fuel pressure.
Standard:3.0 Bar O-ring
If the fuel output pressure is less than 3.0
bar, may fail to start the engine or in
trouble in case of riding.
18-11
