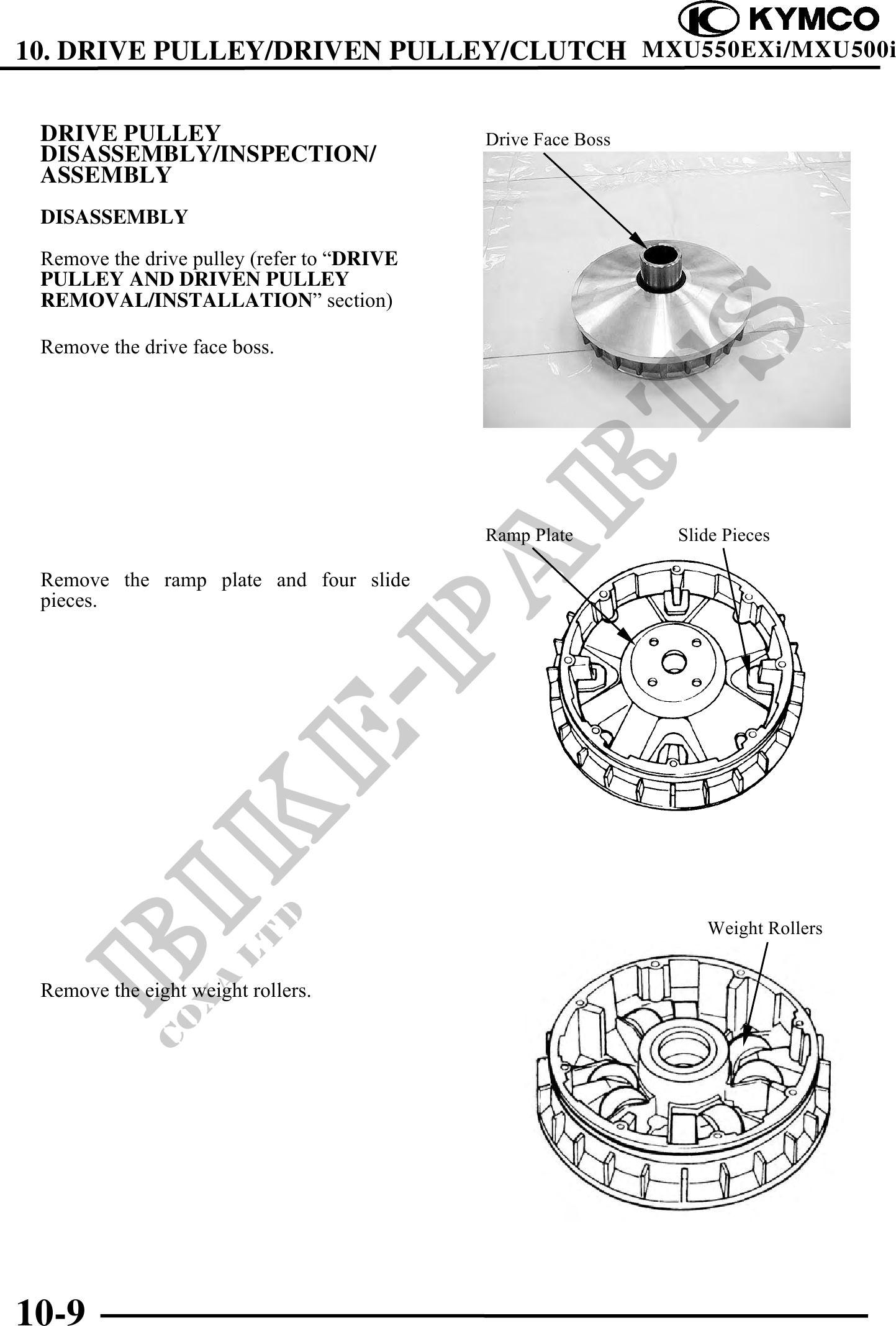

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH MXU550EXi/MXU500i

 DRIVE PULLEY                               Drive Face Boss
 DISASSEMBLY/INSPECTION/
 ASSEMBLY
 DISASSEMBLY

 Remove the drive pulley (refer to "DRIVE
 PULLEY AND DRIVEN PULLEY
 REMOVAL/INSTALLATION" section)

 Remove the drive face boss.




                                            Ramp Plate        Slide Pieces

 Remove the ramp plate and four slide
 pieces.




                                                                 Weight Rollers


 Remove the eight weight rollers.




10-9
