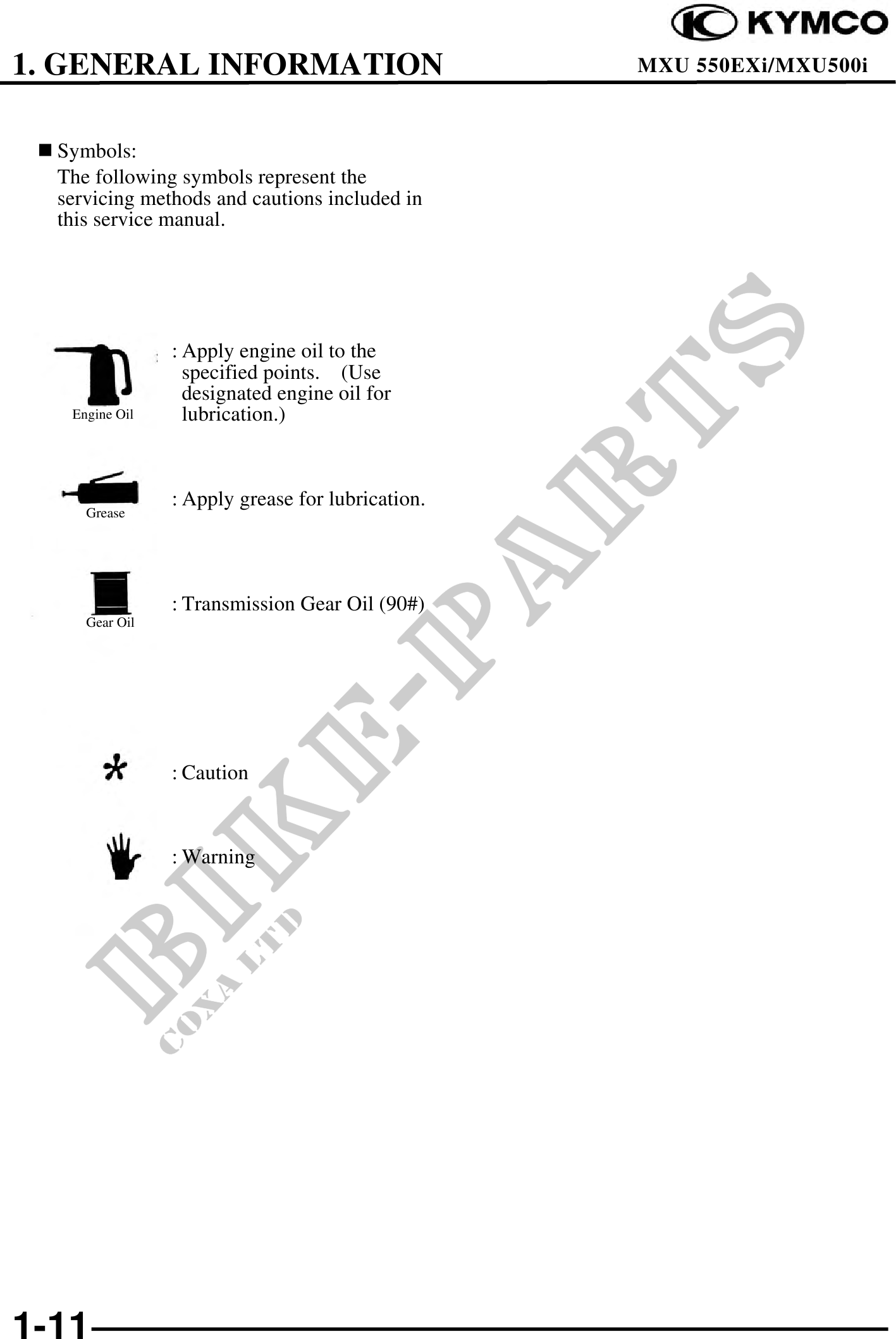

          1. GENERAL INFORMATION                            MXU 550EXi/MXU500i



  Symbols:
  The following symbols represent the
  servicing methods and cautions included in
  this service manual.




                : Apply engine oil to the
                  specified points. (Use
                  designated engine oil for
   Engine Oil     lubrication.)



                : Apply grease for lubrication.
     Grease




                : Transmission Gear Oil (90#)
     Gear Oil




                : Caution



                : Warning




1-11
