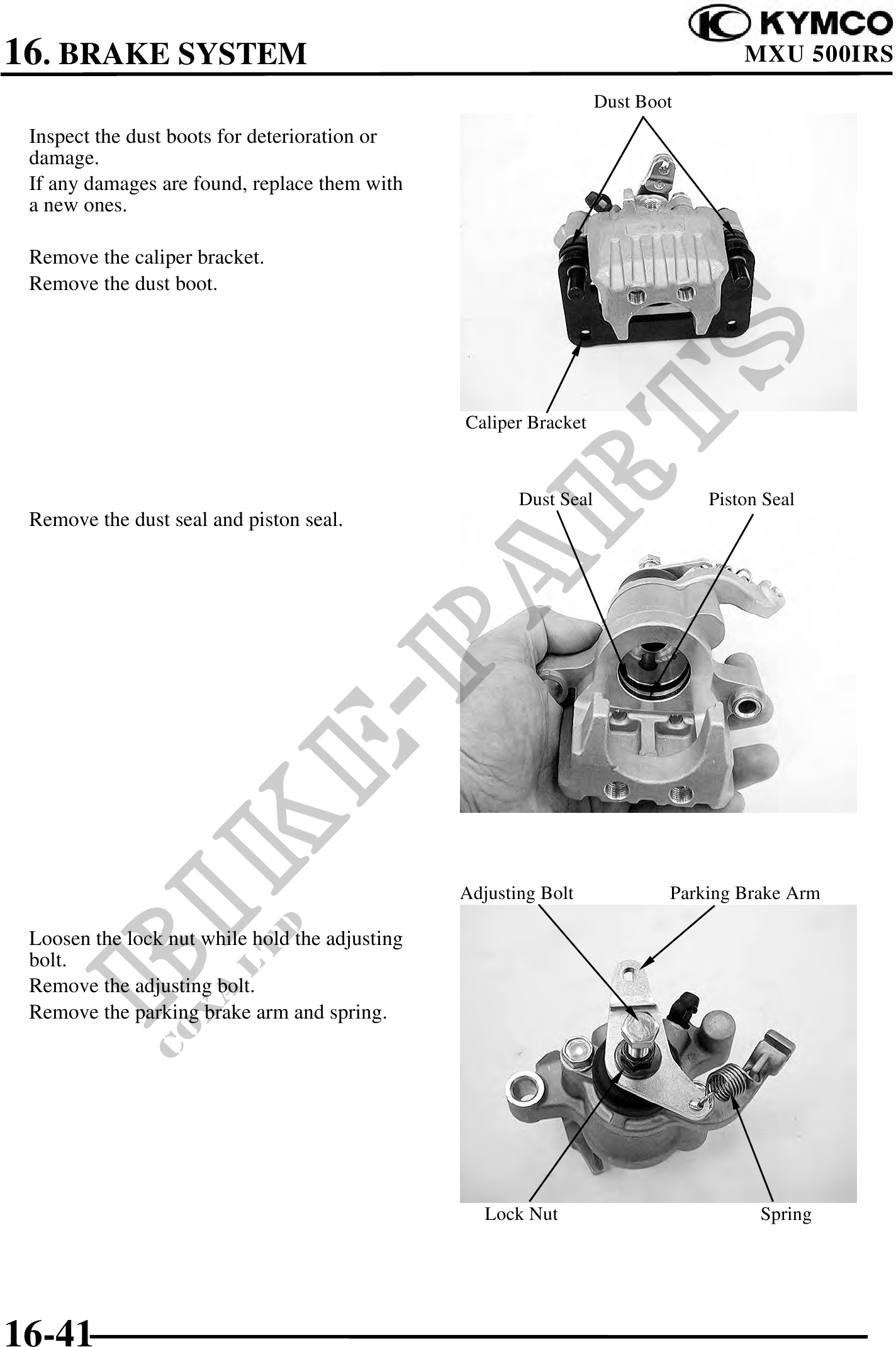

          16. BRAKE SYSTEM                                                                   MXU 500IRS
                                                                   Dust Boot
 Inspect the dust boots for deterioration or
 damage.
 If any damages are found, replace them with
 a new ones.

 Remove the caliper bracket.
 Remove the dust boot.




                                                Caliper Bracket



                                                       Dust Seal               Piston Seal
 Remove the dust seal and piston seal.




                                                Adjusting Bolt             Parking Brake Arm

 Loosen the lock nut while hold the adjusting
 bolt.
 Remove the adjusting bolt.
 Remove the parking brake arm and spring.




                                                   Lock Nut                          Spring




16-41
