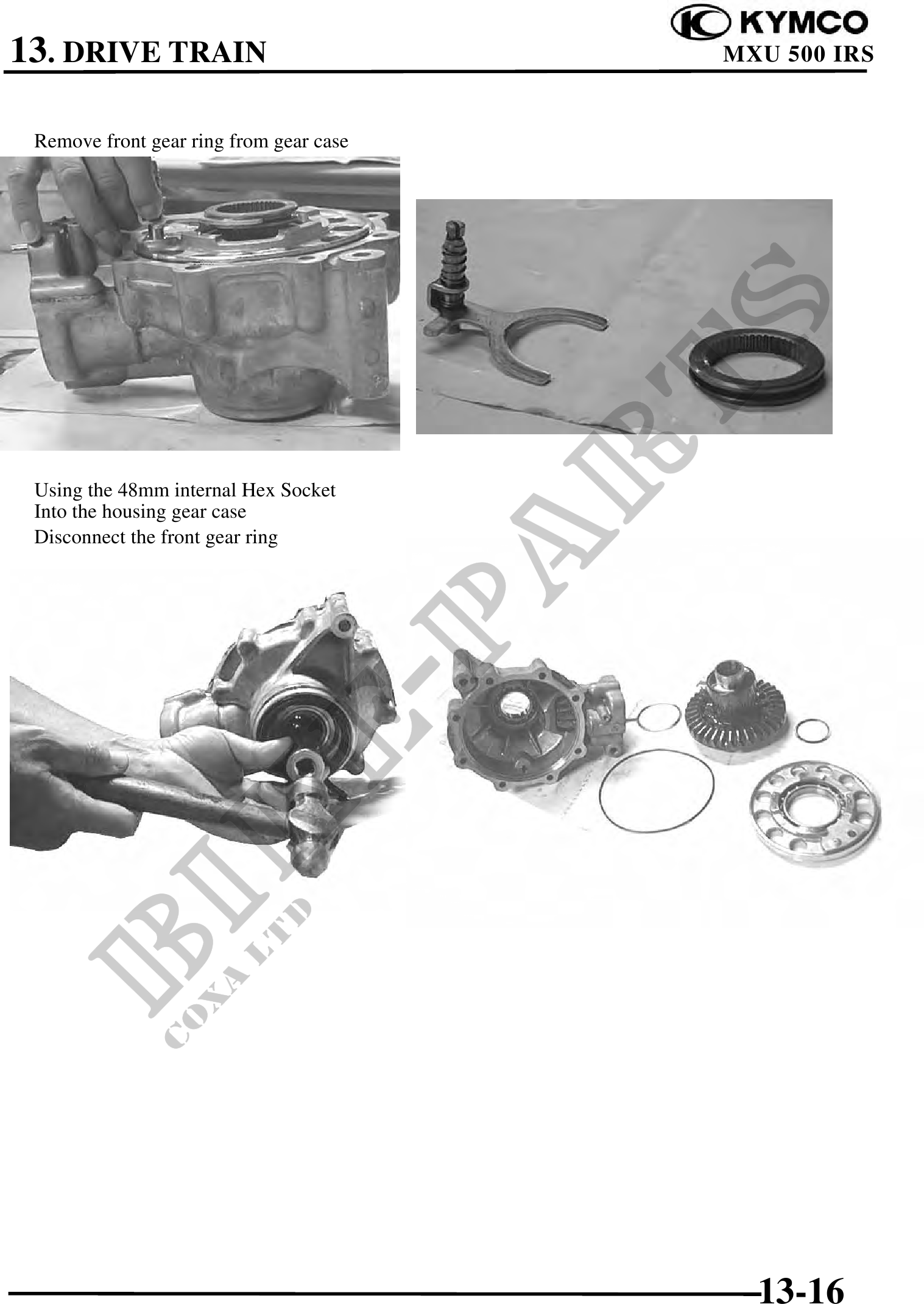

          13. DRIVE TRAIN                          MXU 500 IRS


 Remove front gear ring from gear case




 Using the 48mm internal Hex Socket
 Into the housing gear case
 Disconnect the front gear ring




 Remove the 2WD/4WD shifting




                                           13-16
