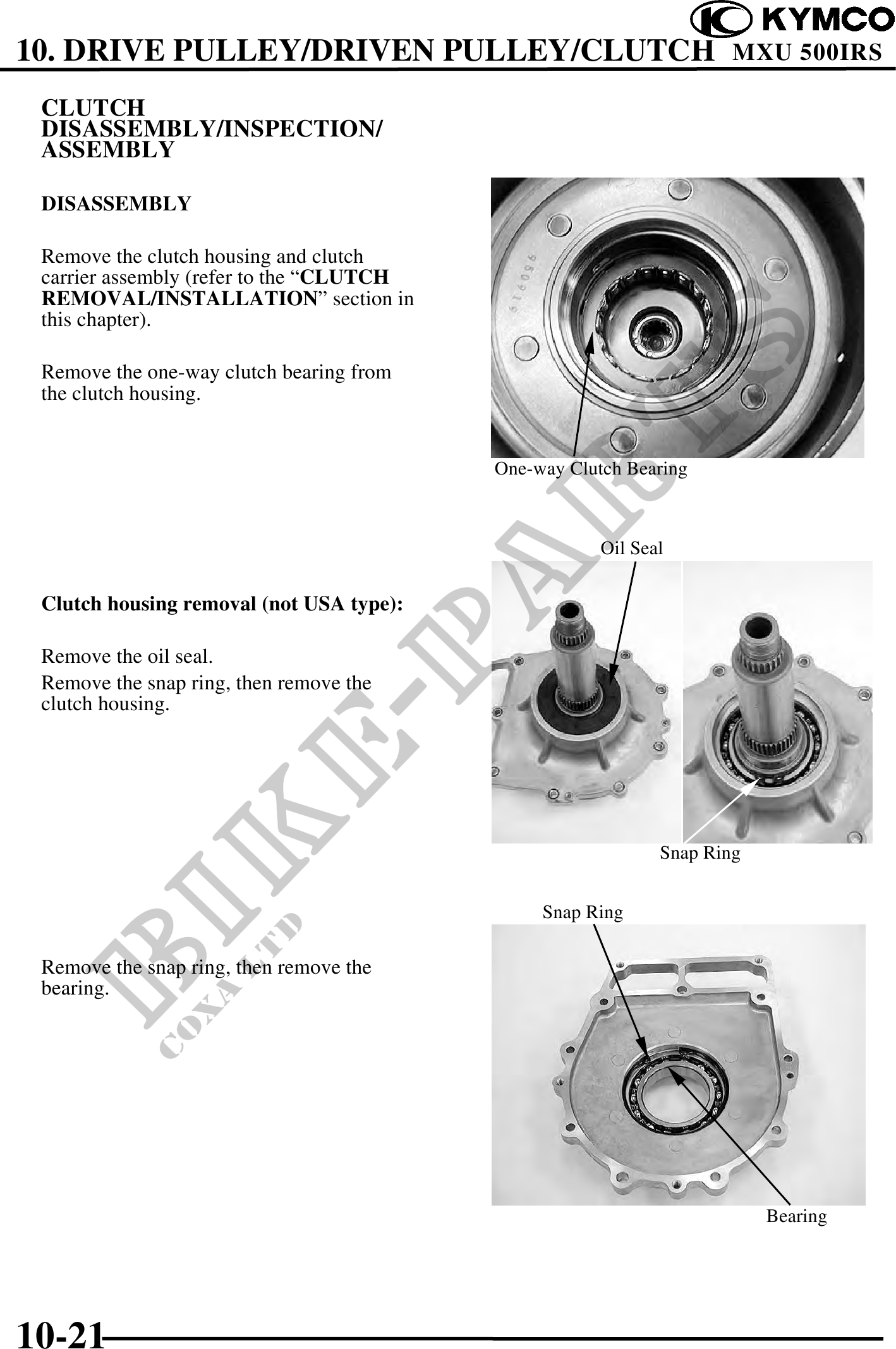

          10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH                                MXU 500IRS

 CLUTCH
 DISASSEMBLY/INSPECTION/
 ASSEMBLY

 DISASSEMBLY

 Remove the clutch housing and clutch
 carrier assembly (refer to the "CLUTCH
 REMOVAL/INSTALLATION" section in
 this chapter).

 Remove the one-way clutch bearing from
 the clutch housing.


                                          One-way Clutch Bearing



                                                      Oil Seal

 Clutch housing removal (not USA type):

 Remove the oil seal.
 Remove the snap ring, then remove the
 clutch housing.




                                                             Snap Ring


                                               Snap Ring

 Remove the snap ring, then remove the
 bearing.




                                                                         Bearing




10-21
