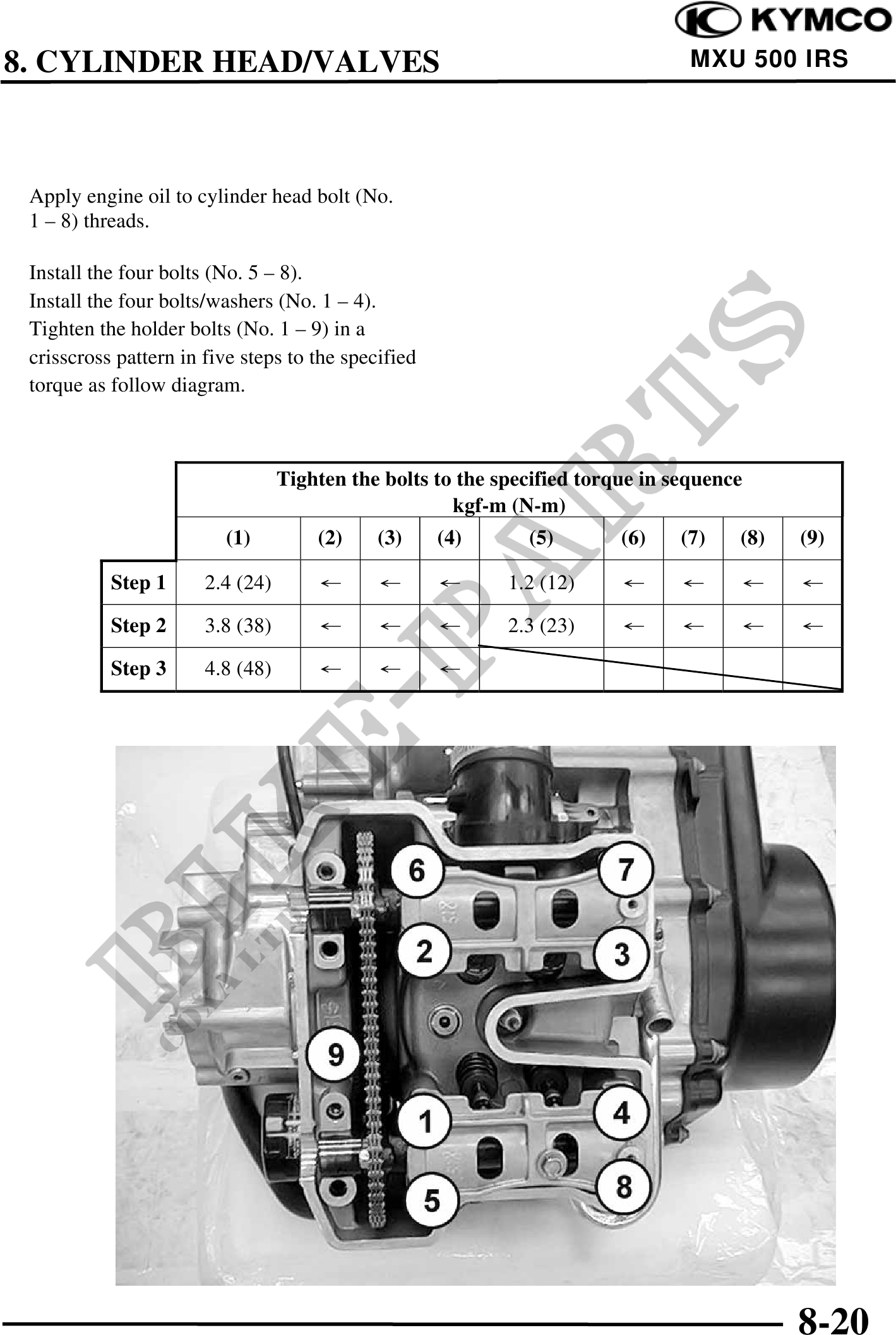

          8. CYLINDER HEAD/VALVES                                                          MXU 500 IRS




 Apply engine oil to cylinder head bolt (No.
 1 ­ 8) threads.

 Install the four bolts (No. 5 ­ 8).
 Install the four bolts/washers (No. 1 ­ 4).
 Tighten the holder bolts (No. 1 ­ 9) in a
 crisscross pattern in five steps to the specified
 torque as follow diagram.



                                  Tighten the bolts to the specified torque in sequence
                                                      kgf-m (N-m)
                         (1)          (2)    (3)     (4)      (5)        (6)    (7)   (8)   (9)

           Step 1      2.4 (24)                             1.2 (12)

           Step 2      3.8 (38)                             2.3 (23)

           Step 3      4.8 (48)




                                                                                            8-20
