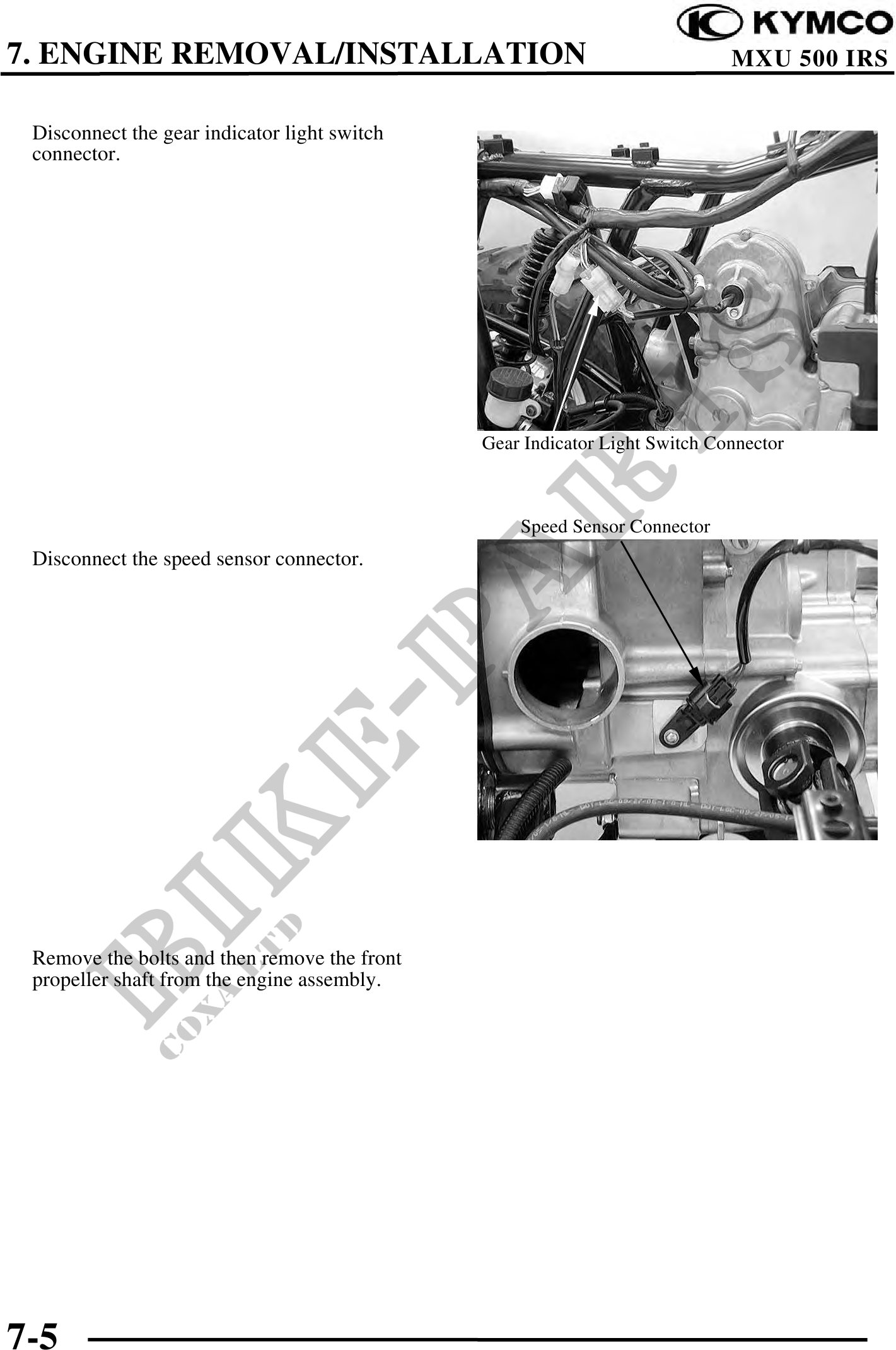

          7. ENGINE REMOVAL/INSTALLATION                                              MXU 500 IRS

 Disconnect the gear indicator light switch
 connector.




                                              Gear Indicator Light Switch Connector



                                                  Speed Sensor Connector
 Disconnect the speed sensor connector.




 Remove the bolts and then remove the front
 propeller shaft from the engine assembly.




7-5
