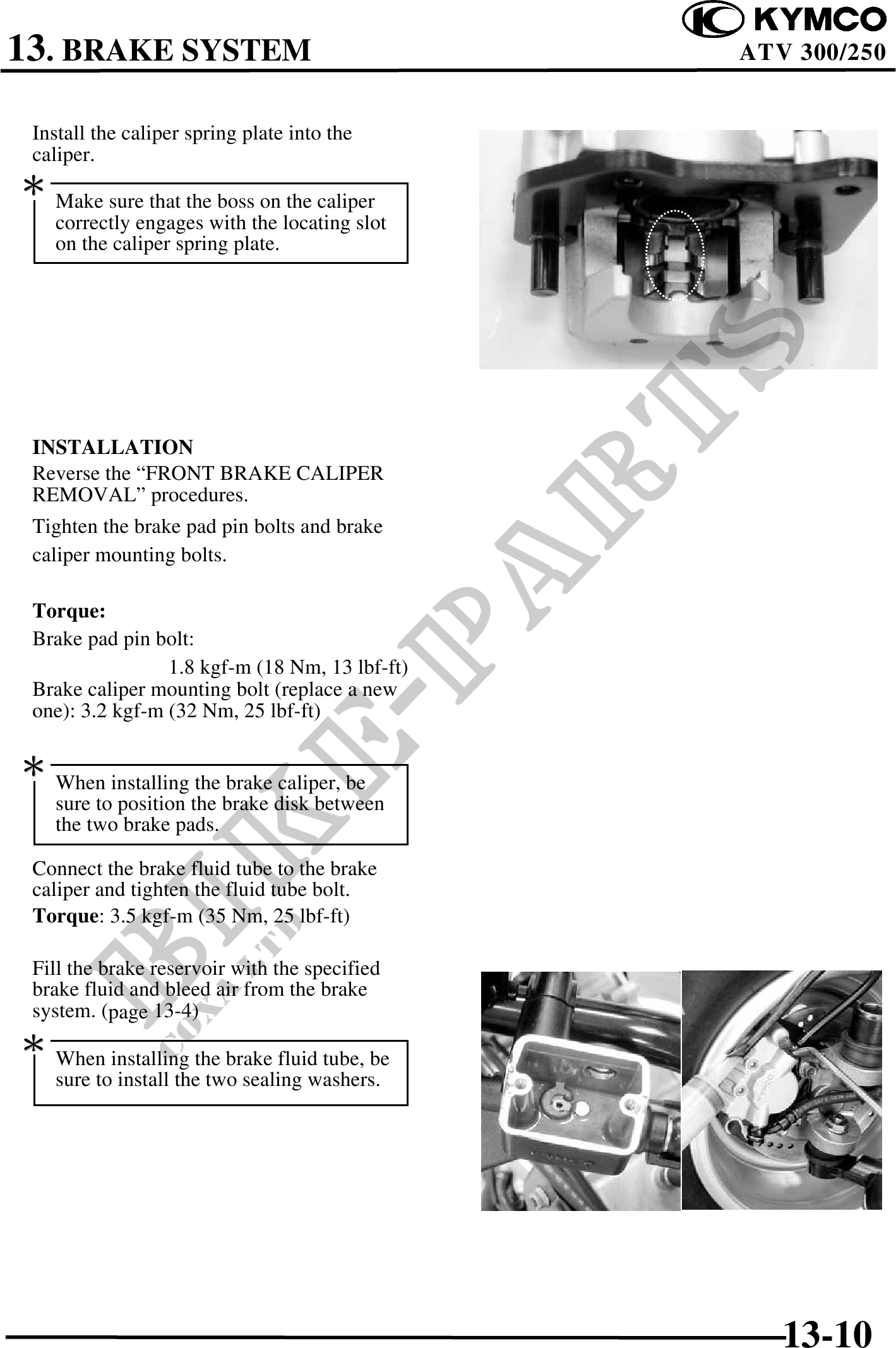

13. BRAKE SYSTEM ATV 300/250 Install the caliper spring plate into the caliper. Make sure that the boss on the caliper correctly engages with the locating slot on the caliper spring plate. INSTALLATION Reverse the "FRONT BRAKE CALIPER REMOVAL" procedures. Tighten the brake pad pin bolts and brake caliper mounting bolts. Torque: Brake pad pin bolt: 1.8 kgf-m (18 Nm, 13 lbf-ft) Brake caliper mounting bolt (replace a new one): 3.2 kgf-m (32 Nm, 25 lbf-ft) When installing the brake caliper, be sure to position the brake disk between the two brake pads. Connect the brake fluid tube to the brake caliper and tighten the fluid tube bolt. Torque: 3.5 kgf-m (35 Nm, 25 lbf-ft) Fill the brake reservoir with the specified brake fluid and bleed air from the brake system. (page 13-4) When installing the brake fluid tube, be sure to install the two sealing washers. 13-10
