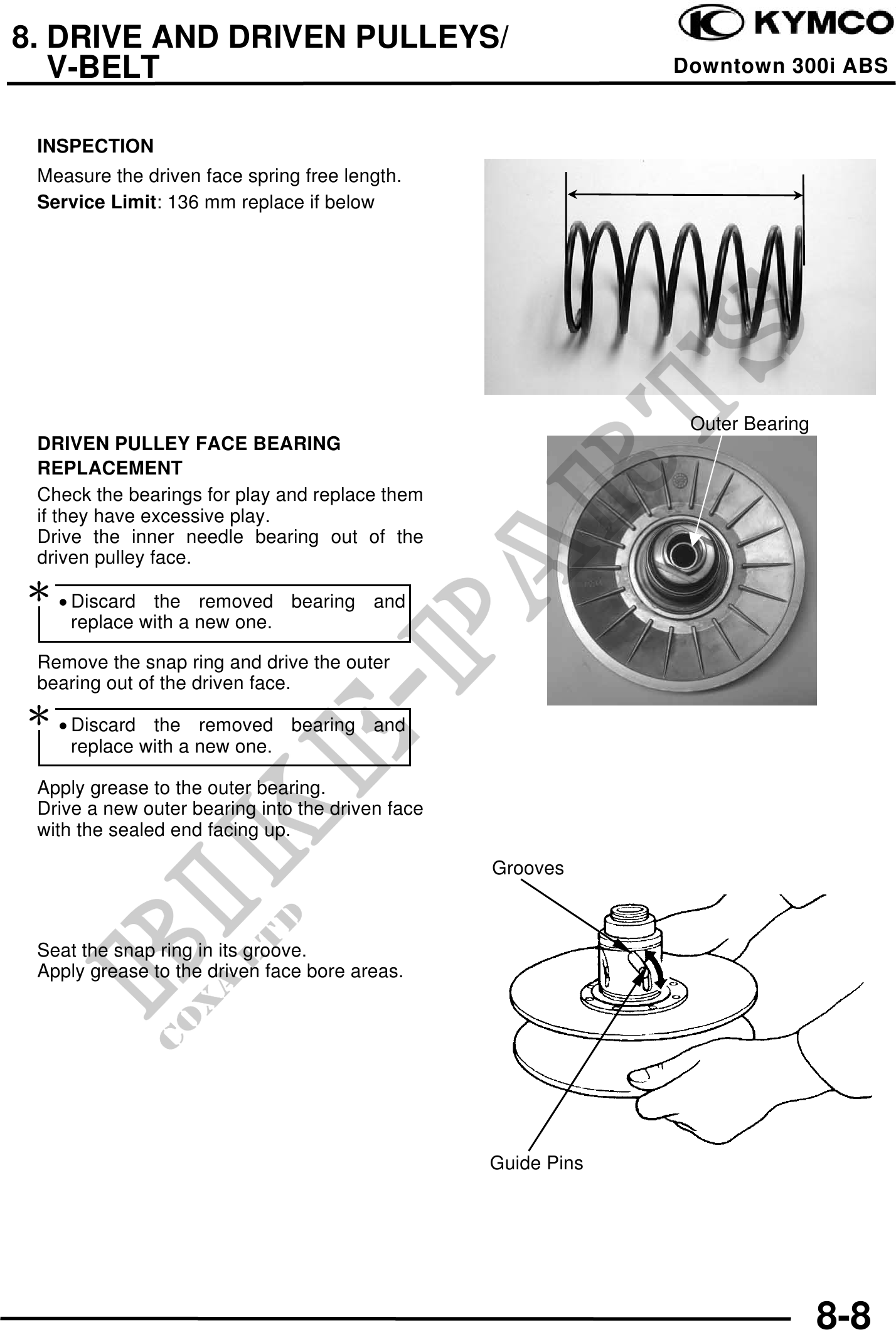

8. DRIVE AND DRIVEN PULLEYS/ V-BELT Downtown 300i ABS INSPECTION Measure the driven face spring free length. Service Limit: 136 mm replace if below Outer Bearing DRIVEN PULLEY FACE BEARING REPLACEMENT Check the bearings for play and replace them if they have excessive play. Drive the inner needle bearing out of the driven pulley face. · Discard the removed bearing and replace with a new one. Remove the snap ring and drive the outer bearing out of the driven face. · Discard the removed bearing and replace with a new one. Apply grease to the outer bearing. Drive a new outer bearing into the driven face with the sealed end facing up. Grooves Seat the snap ring in its groove. Apply grease to the driven face bore areas. Guide Pins 8-8
