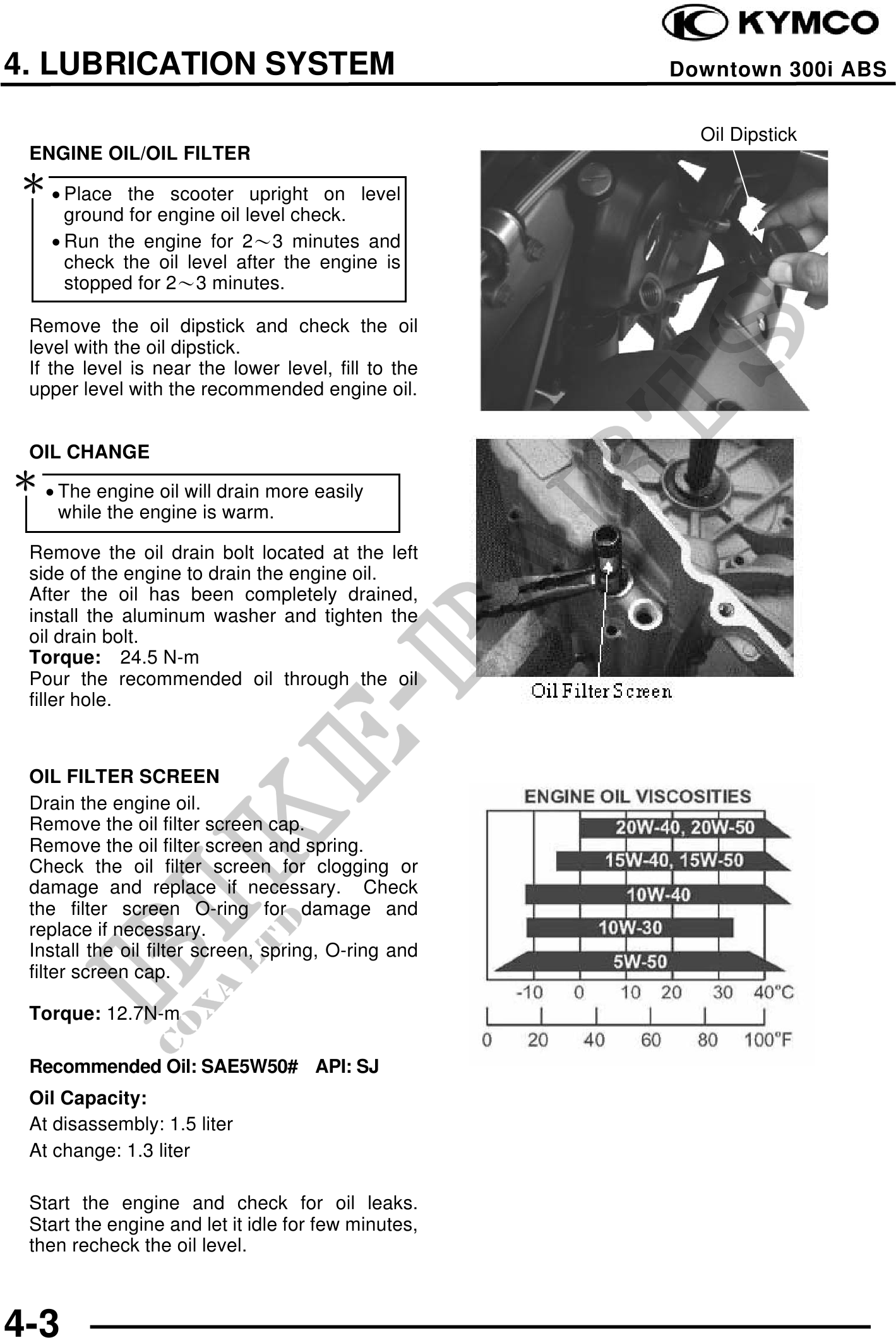

4. LUBRICATION SYSTEM Downtown 300i ABS
Oil Dipstick
ENGINE OIL/OIL FILTER
· Place the scooter upright on level
ground for engine oil level check.
· Run the engine for 23 minutes and
check the oil level after the engine is
stopped for 23 minutes.
Remove the oil dipstick and check the oil
level with the oil dipstick.
If the level is near the lower level, fill to the
upper level with the recommended engine oil.
OIL CHANGE
· The engine oil will drain more easily
while the engine is warm.
Remove the oil drain bolt located at the left
side of the engine to drain the engine oil.
After the oil has been completely drained,
install the aluminum washer and tighten the
oil drain bolt.
Torque: 24.5 N-m
Pour the recommended oil through the oil
filler hole.
OIL FILTER SCREEN
Drain the engine oil.
Remove the oil filter screen cap.
Remove the oil filter screen and spring.
Check the oil filter screen for clogging or
damage and replace if necessary. Check
the filter screen O-ring for damage and
replace if necessary.
Install the oil filter screen, spring, O-ring and
filter screen cap.
Torque: 12.7N-m
Recommended Oil: SAE5W50# API: SJ
Oil Capacity:
At disassembly: 1.5 liter
At change: 1.3 liter
Start the engine and check for oil leaks.
Start the engine and let it idle for few minutes,
then recheck the oil level.
4-3
