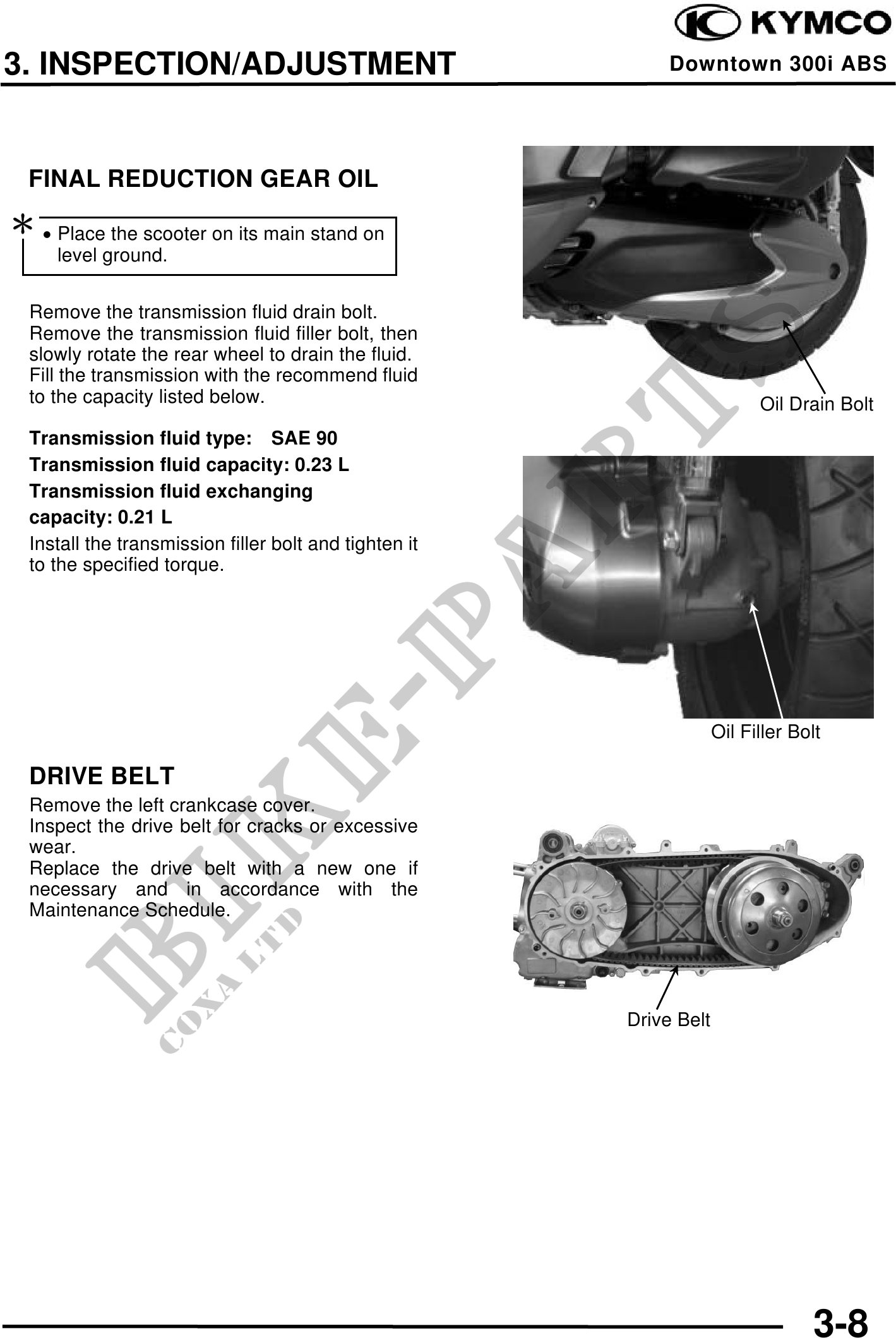

3. INSPECTION/ADJUSTMENT Downtown 300i ABS
FINAL REDUCTION GEAR OIL
· Place the scooter on its main stand on
level ground.
Remove the transmission fluid drain bolt.
Remove the transmission fluid filler bolt, then
slowly rotate the rear wheel to drain the fluid.
Fill the transmission with the recommend fluid
to the capacity listed below. Oil Drain Bolt
Transmission fluid type: SAE 90
Transmission fluid capacity: 0.23 L
Transmission fluid exchanging
capacity: 0.21 L
Install the transmission filler bolt and tighten it
to the specified torque.
Oil Filler Bolt
DRIVE BELT
Remove the left crankcase cover.
Inspect the drive belt for cracks or excessive
wear.
Replace the drive belt with a new one if
necessary and in accordance with the
Maintenance Schedule.
Drive Belt
3-8
