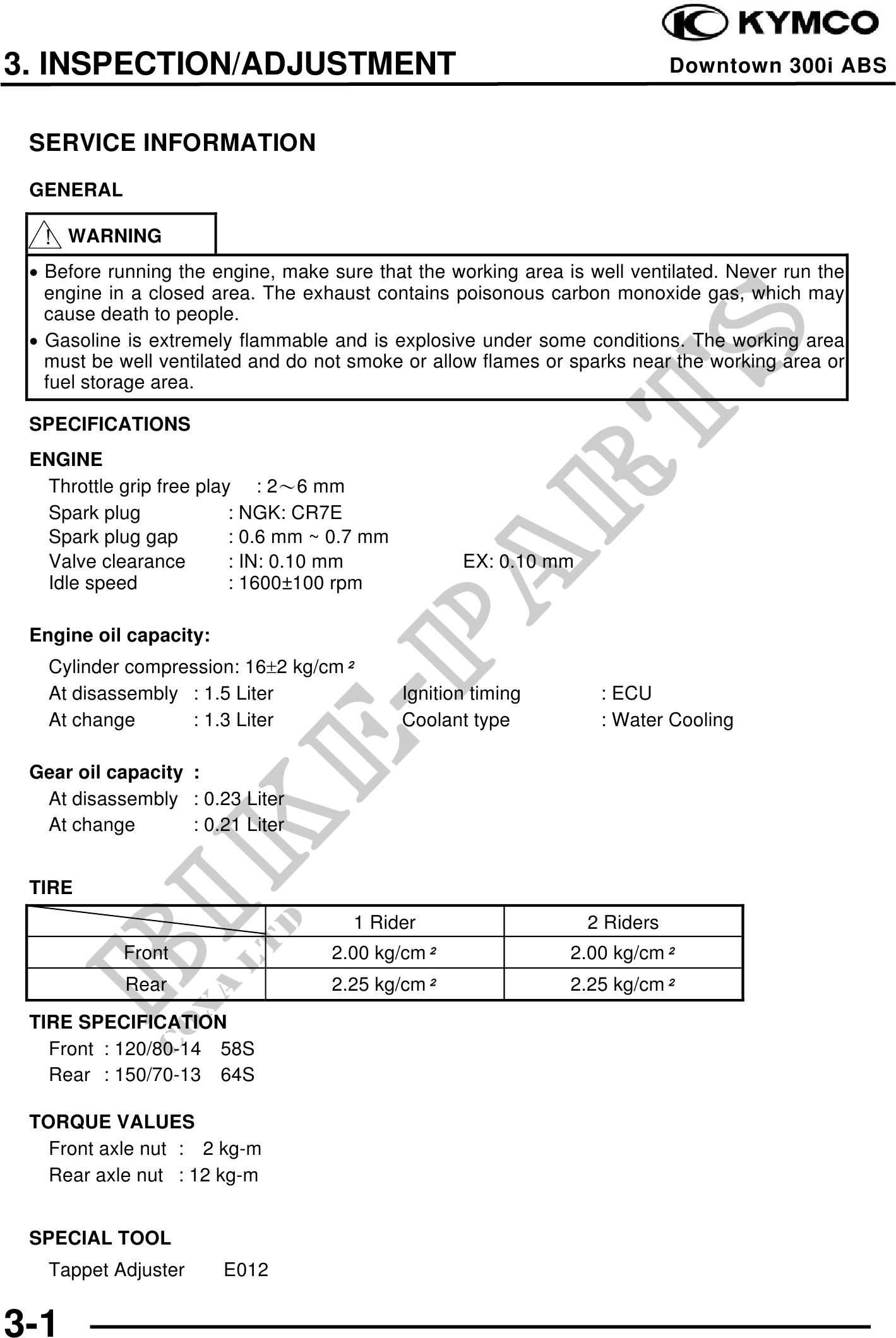

3. INSPECTION/ADJUSTMENT Downtown 300i ABS
SERVICE INFORMATION
GENERAL
WARNING
· Before running the engine, make sure that the working area is well ventilated. Never run the
engine in a closed area. The exhaust contains poisonous carbon monoxide gas, which may
cause death to people.
· Gasoline is extremely flammable and is explosive under some conditions. The working area
must be well ventilated and do not smoke or allow flames or sparks near the working area or
fuel storage area.
SPECIFICATIONS
ENGINE
Throttle grip free play : 26 mm
Spark plug : NGK: CR7E
Spark plug gap : 0.6 mm ~ 0.7 mm
Valve clearance : IN: 0.10 mm EX: 0.10 mm
Idle speed : 1600100 rpm
Engine oil capacity:
Cylinder compression: 162 kg/cm
At disassembly : 1.5 Liter Ignition timing : ECU
At change : 1.3 Liter Coolant type : Water Cooling
Gear oil capacity :
At disassembly : 0.23 Liter
At change : 0.21 Liter
TIRE
1 Rider 2 Riders
Front 2.00 kg/cm 2.00 kg/cm
Rear 2.25 kg/cm 2.25 kg/cm
TIRE SPECIFICATION
Front : 120/80-14 58S
Rear : 150/70-13 64S
TORQUE VALUES
Front axle nut : 2 kg-m
Rear axle nut : 12 kg-m
SPECIAL TOOL
Tappet Adjuster E012
3-1
