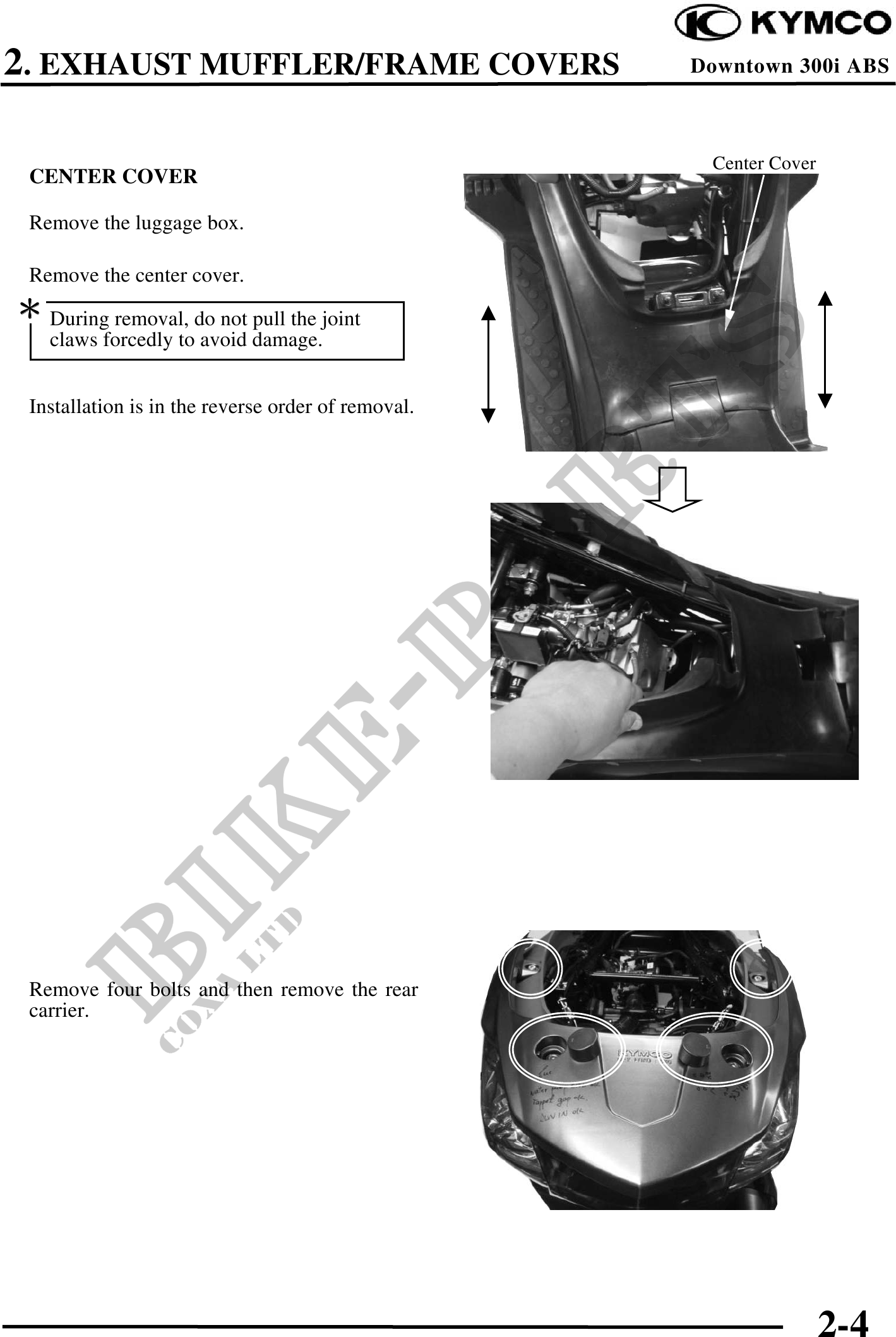

          2. EXHAUST MUFFLER/FRAME COVERS                     Downtown 300i ABS



                                                     Center Cover
 CENTER COVER

 Remove the luggage box.

 Remove the center cover.
 During removal, do not pull the joint
   claws forcedly to avoid damage.


 Installation is in the reverse order of removal.




 Remove four bolts and then remove the rear
 carrier.




                                                                    2-4
