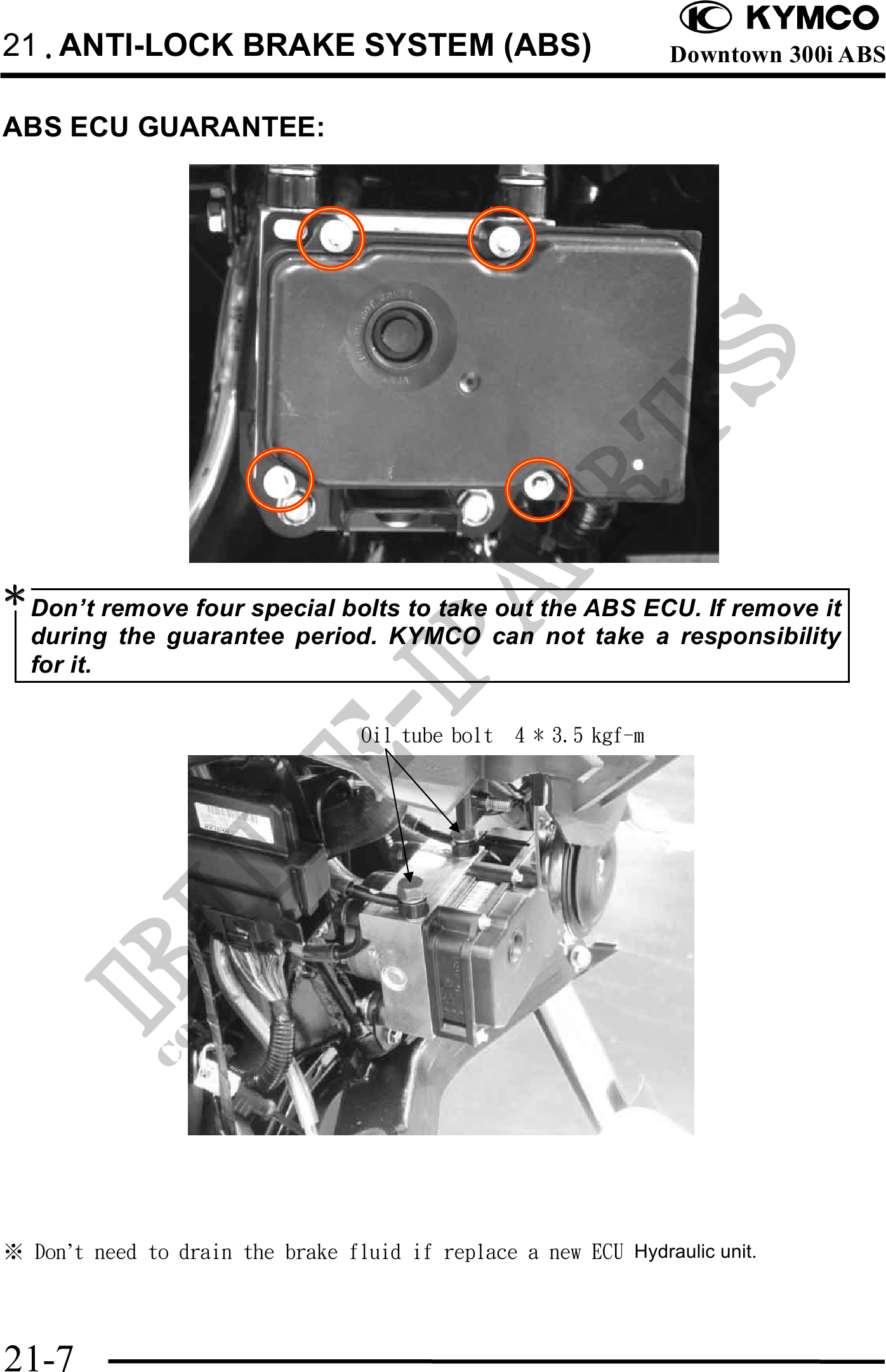

          21.ANTI-LOCK BRAKE SYSTEM (ABS)                                   Downtown 300i ABS


ABS ECU GUARANTEE:




Don't remove four special bolts to take out the ABS ECU. If remove it
  during the guarantee period. KYMCO can not take a responsibility
  for it.

                                  Oil tube bolt   4 * 3.5 kgf-m




 Don't need to drain the brake fluid if replace a new ECU Hydraulic unit.




21-7
