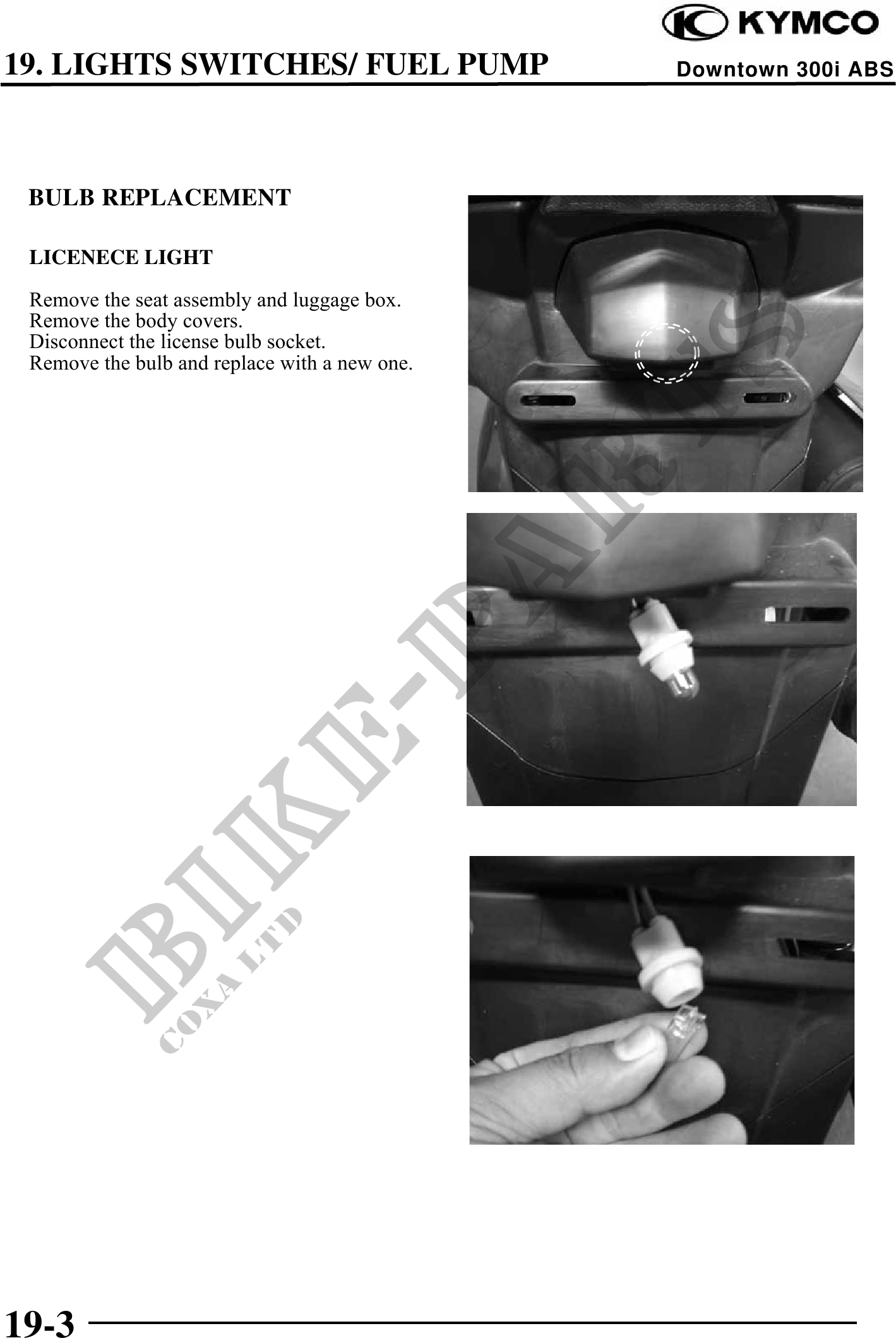

          19. LIGHTS SWITCHES/ FUEL PUMP                 Downtown 300i ABS




 BULB REPLACEMENT

 LICENECE LIGHT

 Remove the seat assembly and luggage box.
 Remove the body covers.
 Disconnect the license bulb socket.
 Remove the bulb and replace with a new one.




19-3
