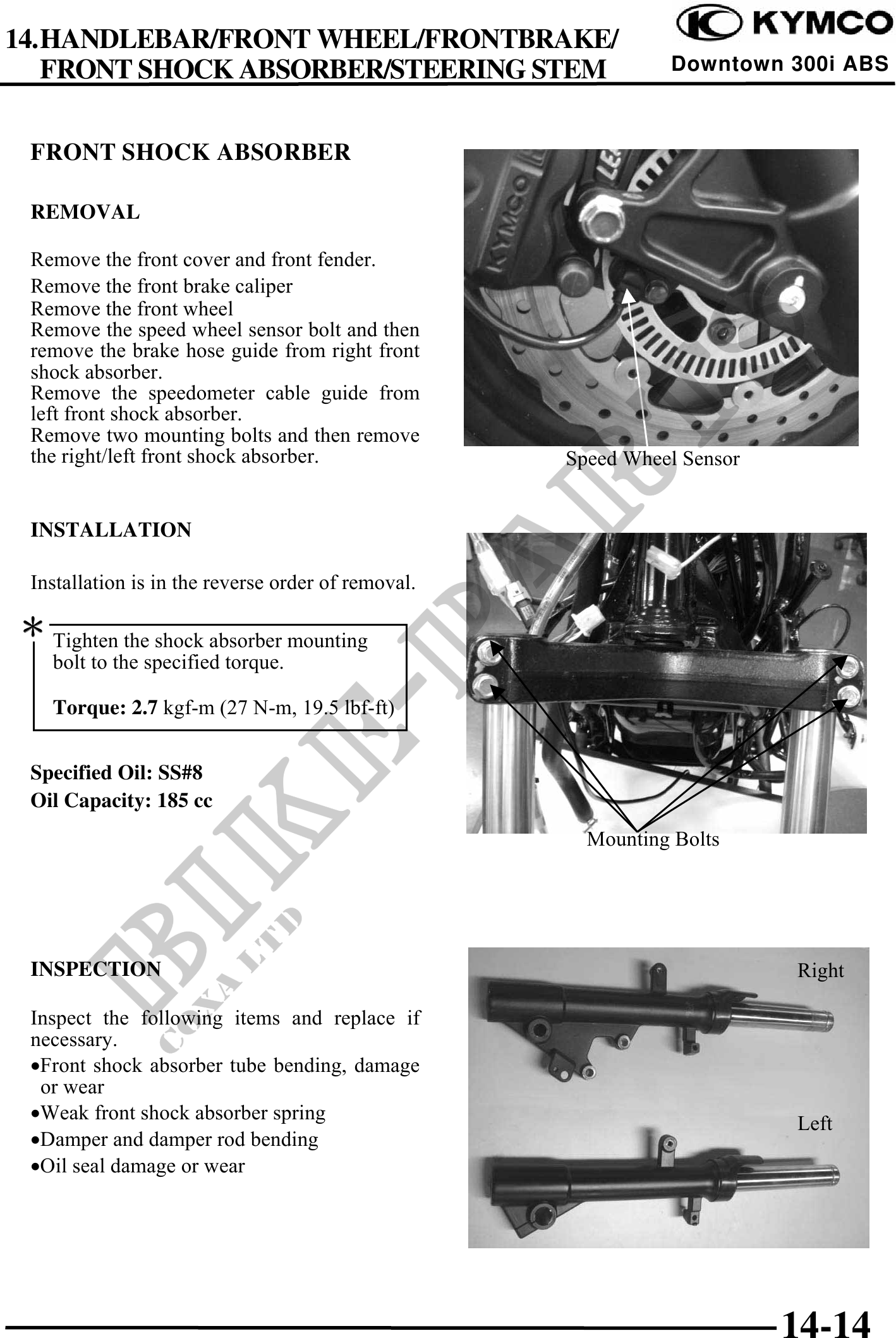

14.HANDLEBAR/FRONT WHEEL/FRONTBRAKE/
FRONT SHOCK ABSORBER/STEERING STEM Downtown 300i ABS
FRONT SHOCK ABSORBER
REMOVAL
Remove the front cover and front fender.
Remove the front brake caliper
Remove the front wheel
Remove the speed wheel sensor bolt and then
remove the brake hose guide from right front
shock absorber.
Remove the speedometer cable guide from
left front shock absorber.
Remove two mounting bolts and then remove
the right/left front shock absorber. Speed Wheel Sensor
INSTALLATION
Installation is in the reverse order of removal.
Tighten the shock absorber mounting
bolt to the specified torque.
Torque: 2.7 kgf-m (27 N-m, 19.5 lbf-ft)
Specified Oil: SS#8
Oil Capacity: 185 cc
Mounting Bolts
INSPECTION Right
Inspect the following items and replace if
necessary.
·Front shock absorber tube bending, damage
or wear
·Weak front shock absorber spring
Left
·Damper and damper rod bending
·Oil seal damage or wear
14-14
