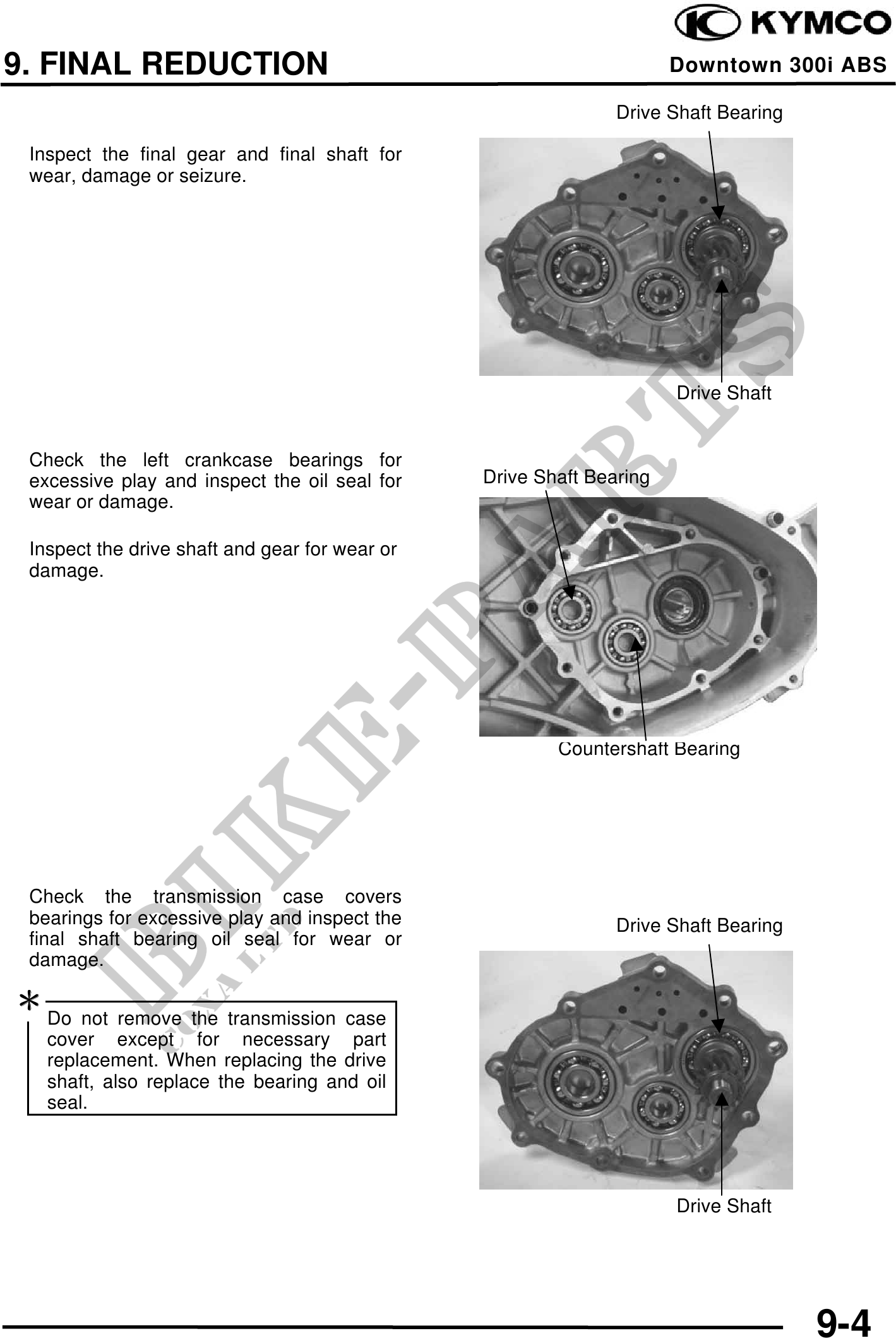

          9. FINAL REDUCTION                                                    Downtown 300i ABS

                                                               Drive Shaft Bearing

 Inspect the final gear and final shaft for
 wear, damage or seizure.




                                                                      Drive Shaft


 Check the left crankcase bearings for
 excessive play and inspect the oil seal for    Drive Shaft Bearing
 wear or damage.

 Inspect the drive shaft and gear for wear or
 damage.




                                                        Countershaft Bearing




 Check the transmission case covers
 bearings for excessive play and inspect the                   Drive Shaft Bearing
 final shaft bearing oil seal for wear or
 damage.

 Do    not remove the transmission case
   cover except for necessary part
   replacement. When replacing the drive
   shaft, also replace the bearing and oil
   seal.




                                                                      Drive Shaft




                                                                                     9-4
