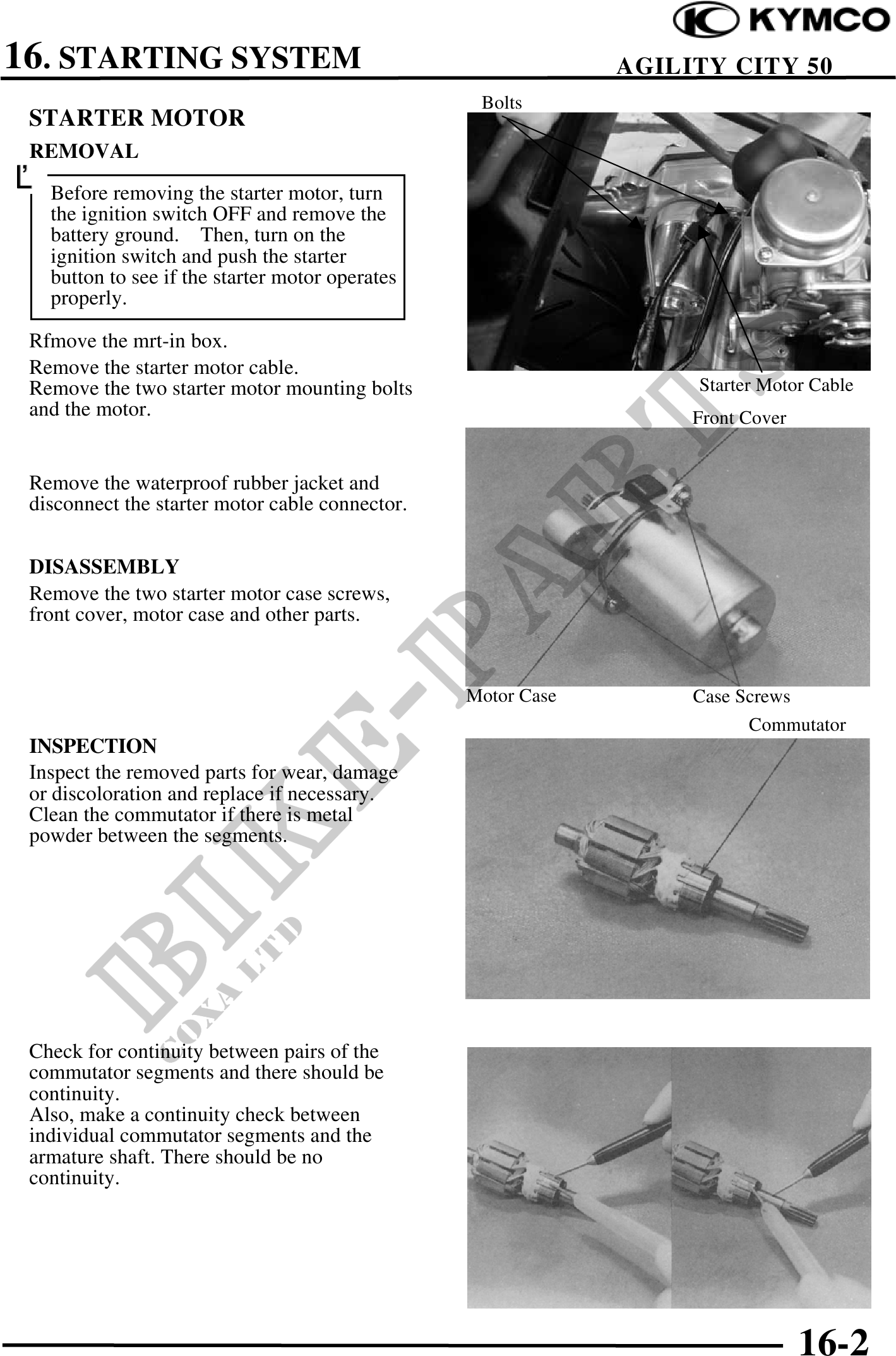

          16. STARTING SYSTEM                                           AGILITY CITY 50
                                                  Bolts
 STARTER MOTOR
 REMOVAL
 Before removing the starter motor, turn
   the ignition switch OFF and remove the
   battery ground. Then, turn on the
   ignition switch and push the starter
   button to see if the starter motor operates
   properly.

 Rfmove the mrt-in box.
 Remove the starter motor cable.
 Remove the two starter motor mounting bolts                       Starter Motor Cable
 and the motor.                                                    Front Cover


 Remove the waterproof rubber jacket and
 disconnect the starter motor cable connector.


 DISASSEMBLY
 Remove the two starter motor case screws,
 front cover, motor case and other parts.


                                                 Motor Case        Case Screws
                                                                         Commutator
 INSPECTION
 Inspect the removed parts for wear, damage
 or discoloration and replace if necessary.
 Clean the commutator if there is metal
 powder between the segments.




 Check for continuity between pairs of the
 commutator segments and there should be
 continuity.
 Also, make a continuity check between
 individual commutator segments and the
 armature shaft. There should be no
 continuity.




                                                                                 16-2
