agility city 50 Manuel atelier : Page 167

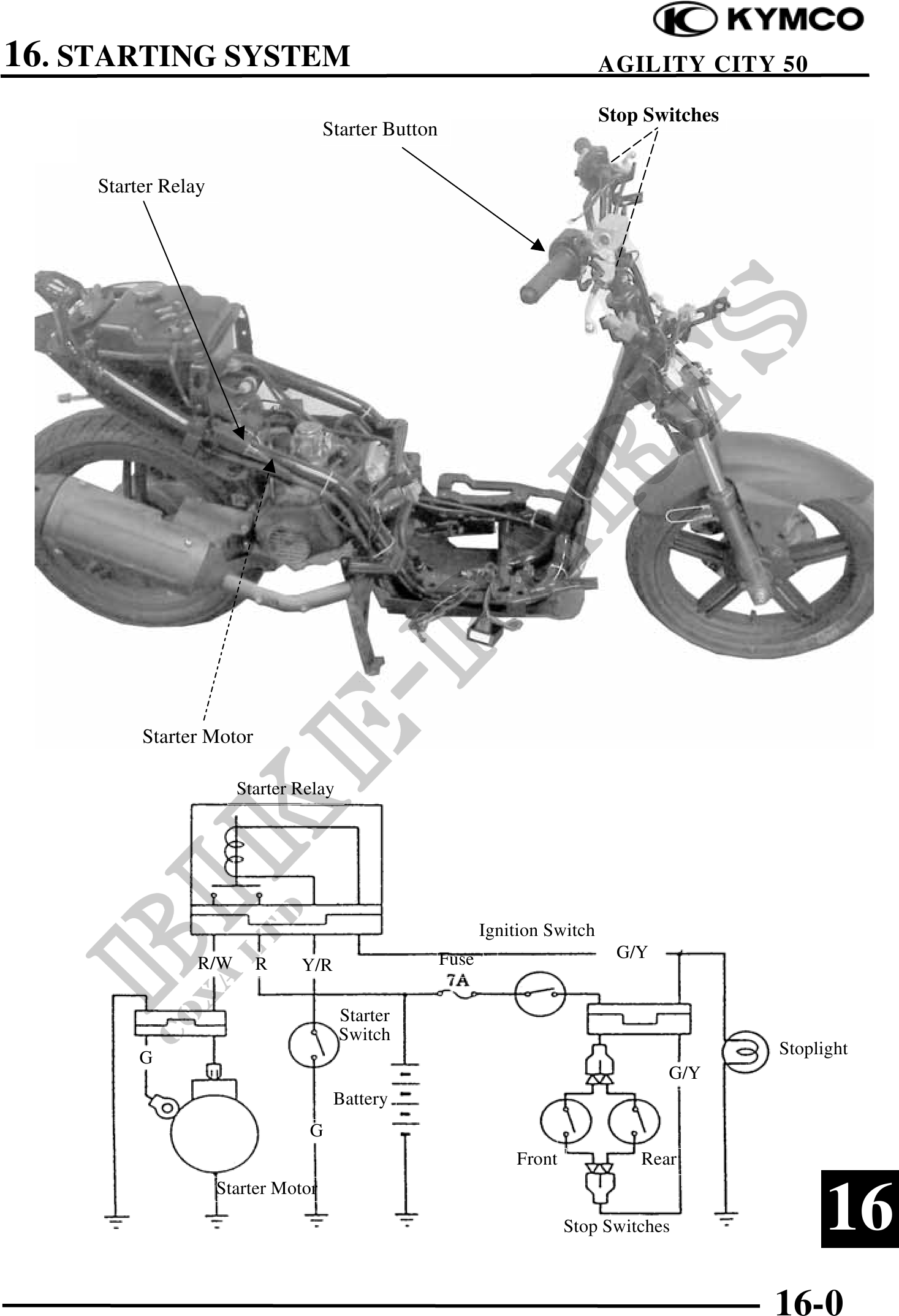

          16. STARTING SYSTEM                                                            AGILITY CITY 50

                                                                               Stop Switches
16                                   Starter Button

     Starter Relay




          Starter Motor

                       Starter Relay




                                                             Ignition Switch
                                                      Fuse                      G/Y
                 R/W      R    Y/R

                                       Starter
                                       Switch
          G                                                                                    Stoplight
                                                                                      G/Y
                                      Battery
                                 G
                                                                 Front             Rear
                     Starter Motor

                                                                         Stop Switches               16
                                                                                               16-0
