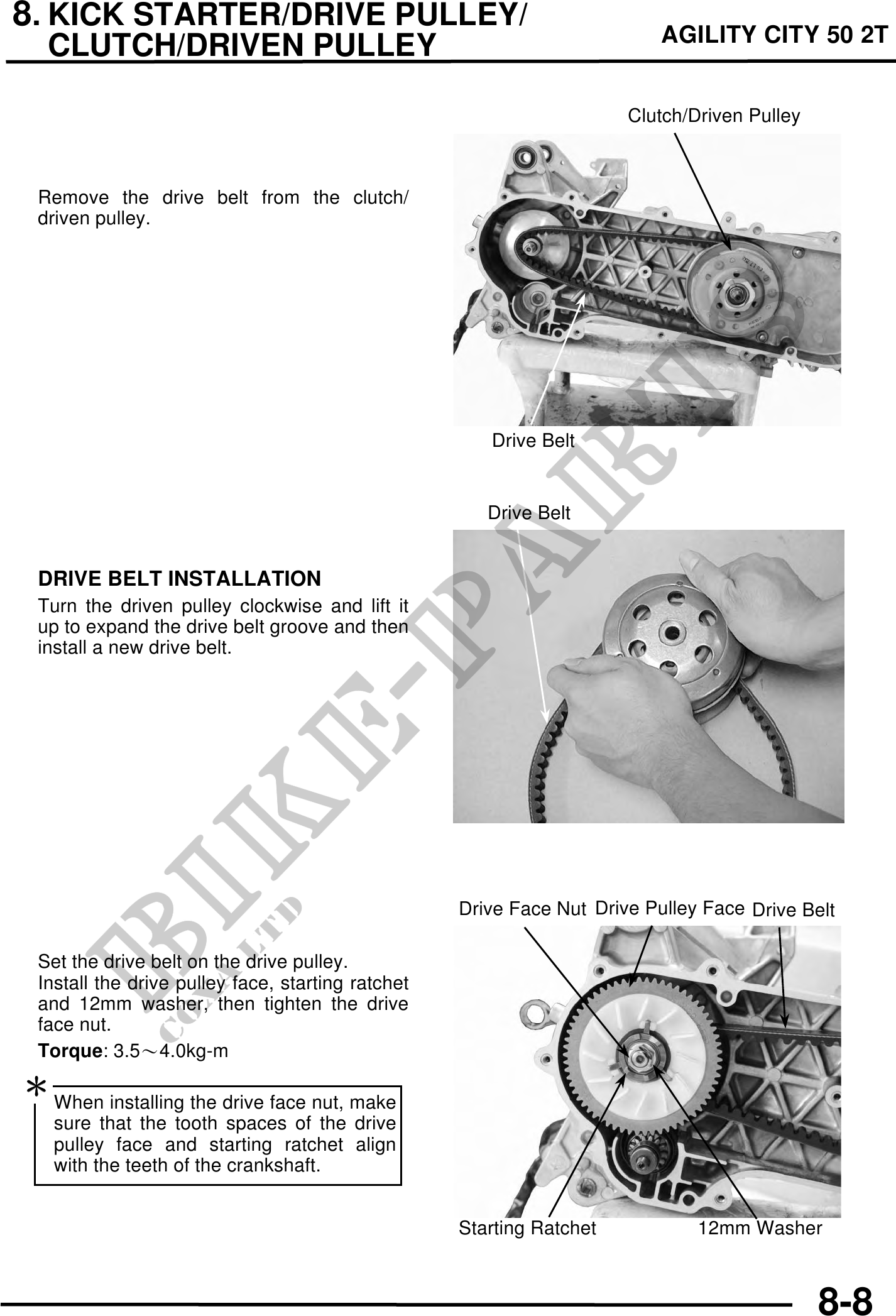

          8. KICK STARTER/DRIVE PULLEY/
                                                                          AGILITY CITY 50 2T
  CLUTCH/DRIVEN PULLEY

                                                                      Clutch/Driven Pulley



 Remove the drive belt from the clutch/
 driven pulley.




                                                      Drive Belt


                                                      Drive Belt


 DRIVE BELT INSTALLATION
 Turn the driven pulley clockwise and lift it
 up to expand the drive belt groove and then
 install a new drive belt.




                                                   Drive Face Nut Drive Pulley Face Drive Belt

 Set the drive belt on the drive pulley.
 Install the drive pulley face, starting ratchet
 and 12mm washer, then tighten the drive
 face nut.
 Torque: 3.54.0kg-m

 When installing the drive face nut, make
   sure that the tooth spaces of the drive
   pulley face and starting ratchet align
   with the teeth of the crankshaft.


                                                   Starting Ratchet           12mm Washer
