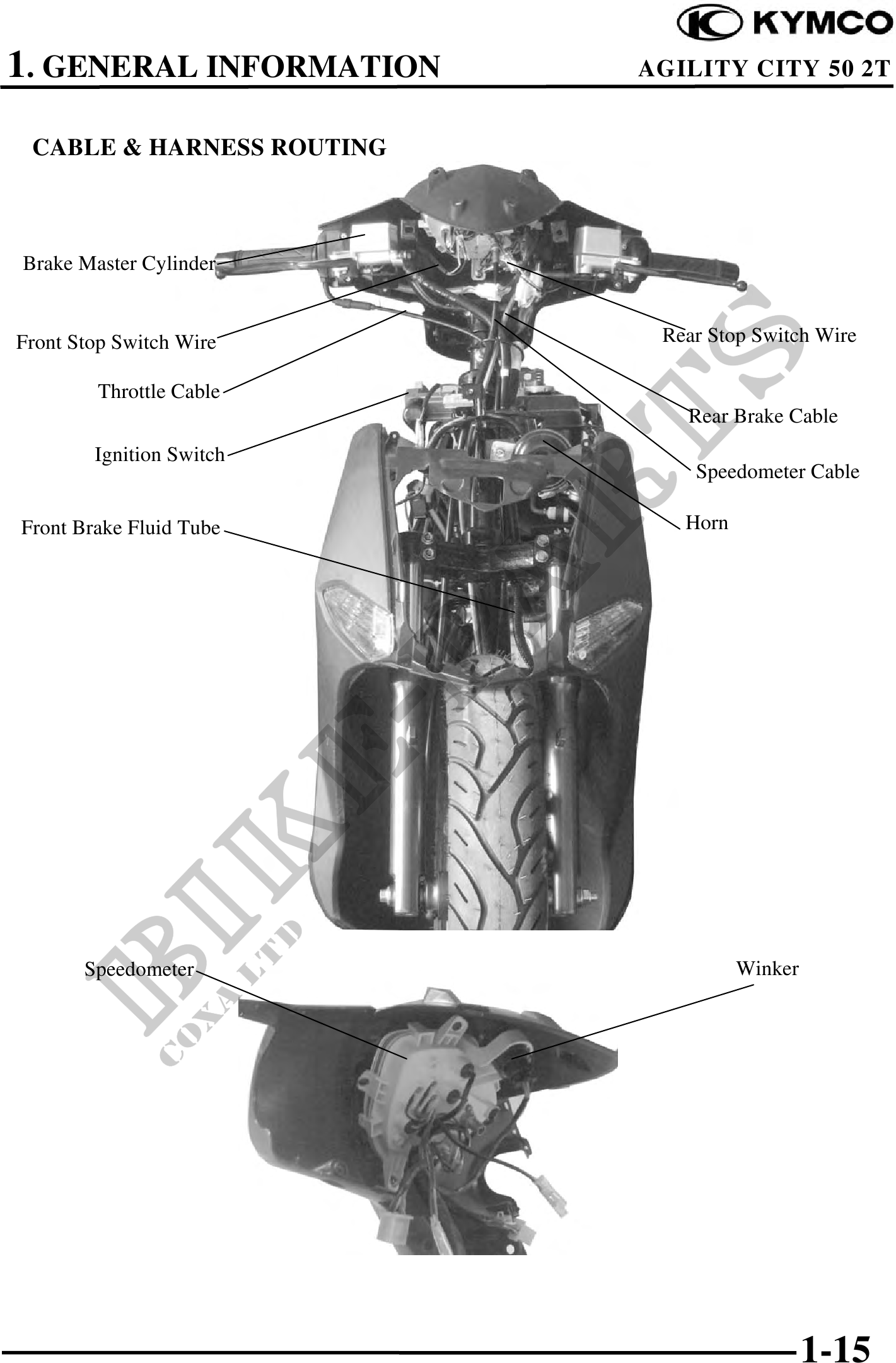

          1. GENERAL INFORMATION     AGILITY CITY 50 2T


 CABLE & HARNESS ROUTING



Brake Master Cylinder


Front Stop Switch Wire      Rear Stop Switch Wire

        Throttle Cable
                              Rear Brake Cable
        Ignition Switch
                               Speedometer Cable

Front Brake Fluid Tube        Horn




       Speedometer                   Winker




                                              1-15
