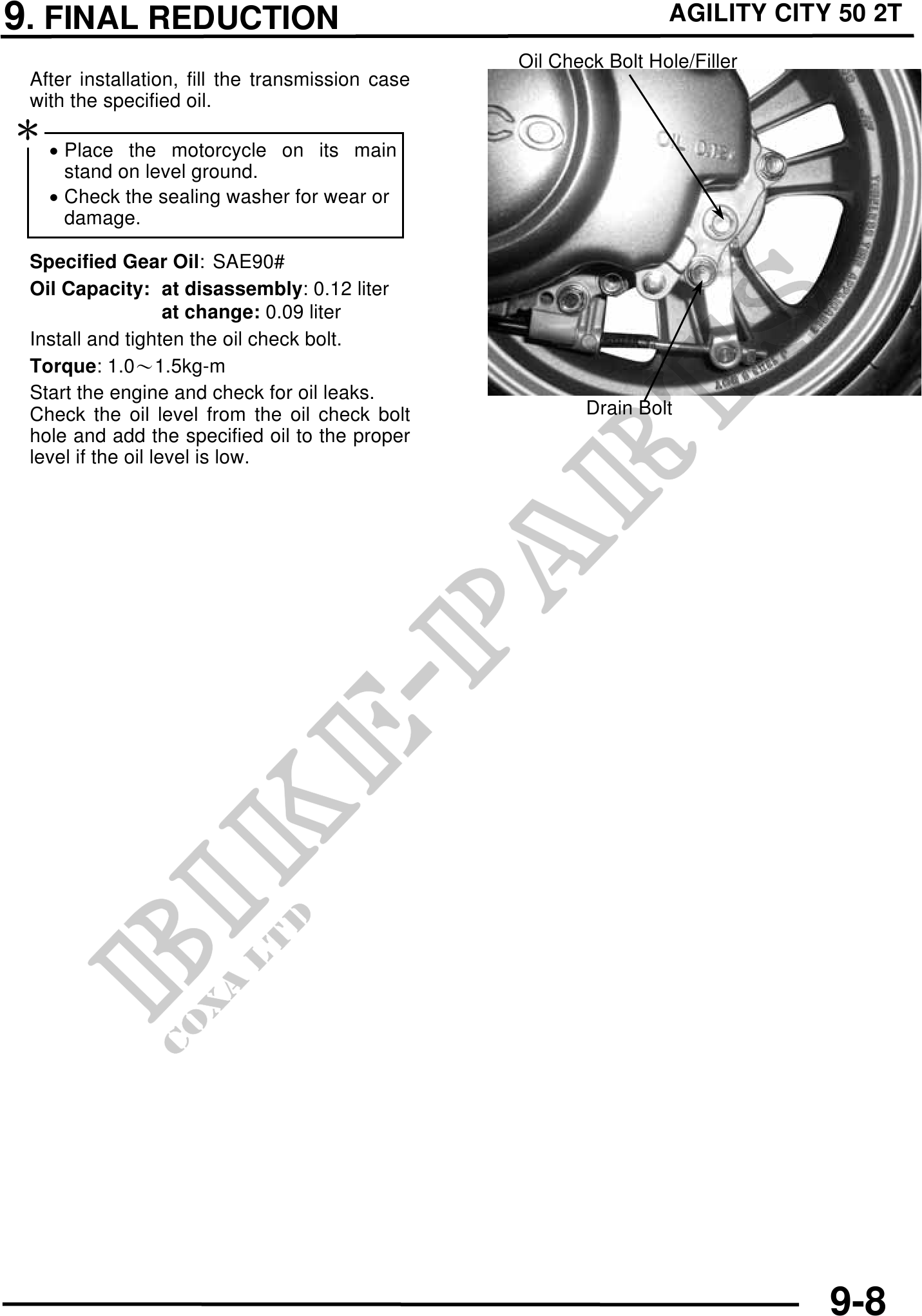

9. FINAL REDUCTION AGILITY CITY 50 2T
Oil Check Bolt Hole/Filler
After installation, fill the transmission case
with the specified oil.
· Place the motorcycle on its main
stand on level ground.
· Check the sealing washer for wear or
damage.
Specified Gear Oil: SAE90#
Oil Capacity: at disassembly: 0.12 liter
at change: 0.09 liter
Install and tighten the oil check bolt.
Torque: 1.01.5kg-m
Start the engine and check for oil leaks.
Check the oil level from the oil check bolt Drain Bolt
hole and add the specified oil to the proper
level if the oil level is low.
9-8
