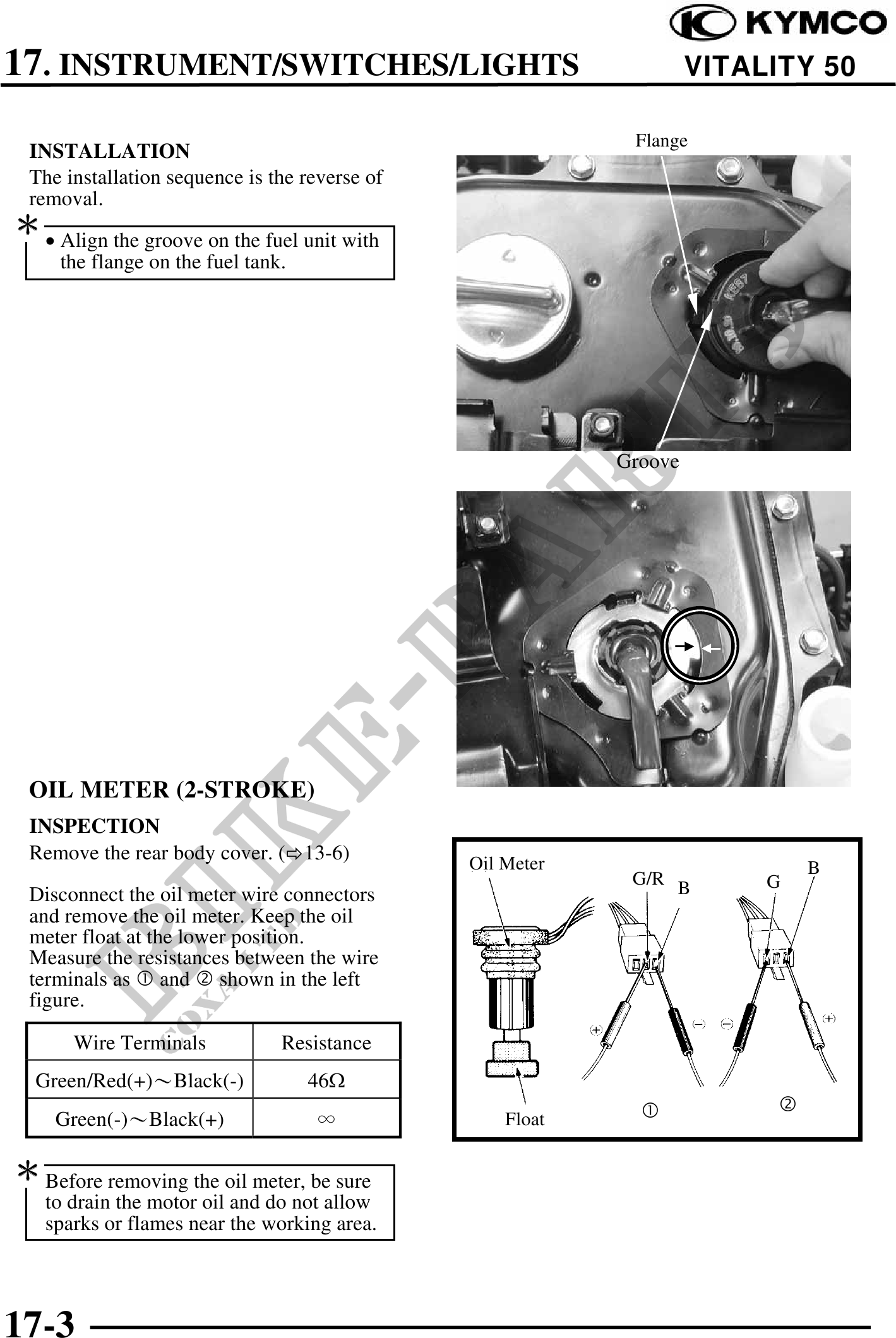

17. INSTRUMENT/SWITCHES/LIGHTS VITALITY 50
Flange
INSTALLATION
The installation sequence is the reverse of
removal.
· Align the groove on the fuel unit with
the flange on the fuel tank.
Groove
OIL METER (2-STROKE)
INSPECTION
Remove the rear body cover. ( 13-6) Oil Meter B
G/R B G
Disconnect the oil meter wire connectors
and remove the oil meter. Keep the oil
meter float at the lower position.
Measure the resistances between the wire
terminals as and shown in the left
figure.
Wire Terminals Resistance
Green/Red(+)Black(-) 46
Green(-)Black(+) Float
Before removing the oil meter, be sure
to drain the motor oil and do not allow
sparks or flames near the working area.
17-3
