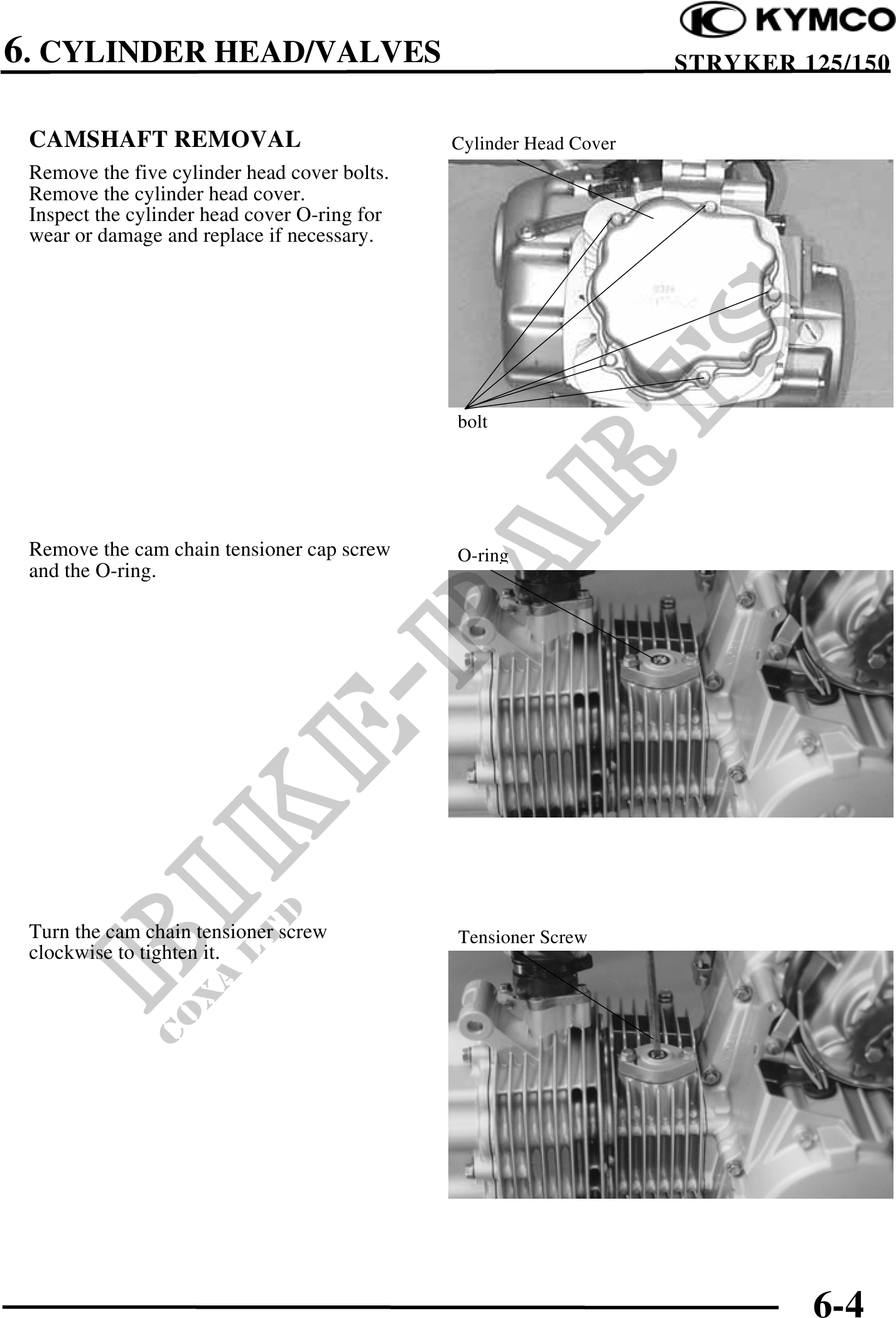

6. CYLINDER HEAD/VALVES STRYKER 125/150
CAMSHAFT REMOVAL Cylinder Head Cover
Remove the five cylinder head cover bolts.
Remove the cylinder head cover.
Inspect the cylinder head cover O-ring for
wear or damage and replace if necessary.
bolt
Remove the cam chain tensioner cap screw O-ring
and the O-ring.
Turn the cam chain tensioner screw Tensioner Screw
clockwise to tighten it.
6-4
