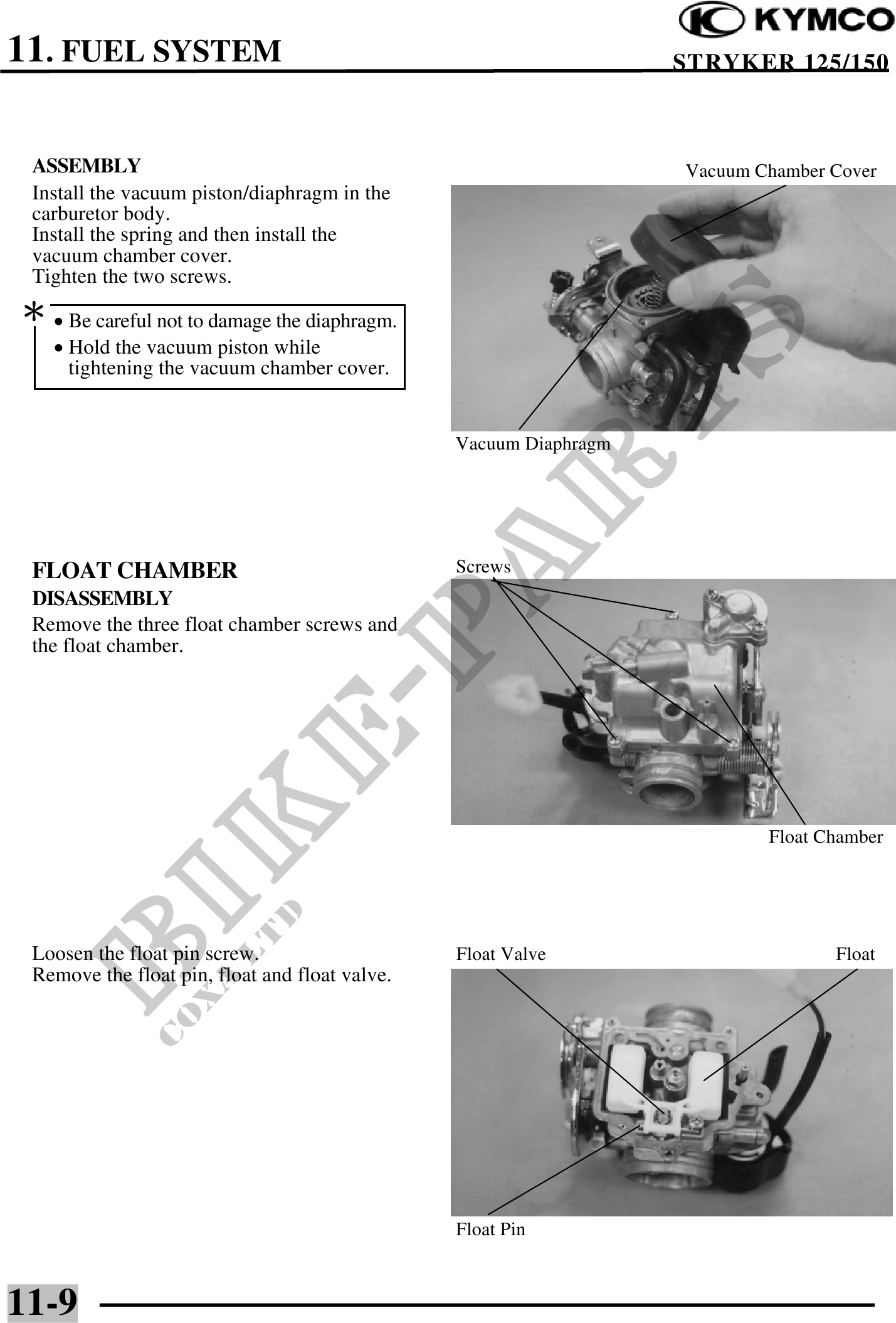

11. FUEL SYSTEM STRYKER 125/150
ASSEMBLY Vacuum Chamber Cover
Install the vacuum piston/diaphragm in the
carburetor body.
Install the spring and then install the
vacuum chamber cover.
Tighten the two screws.
· Be careful not to damage the diaphragm.
· Hold the vacuum piston while
tightening the vacuum chamber cover.
Vacuum Diaphragm
FLOAT CHAMBER Screws
DISASSEMBLY
Remove the three float chamber screws and
the float chamber.
Float Chamber
Loosen the float pin screw. Float Valve Float
Remove the float pin, float and float valve.
Float Pin
11-9
