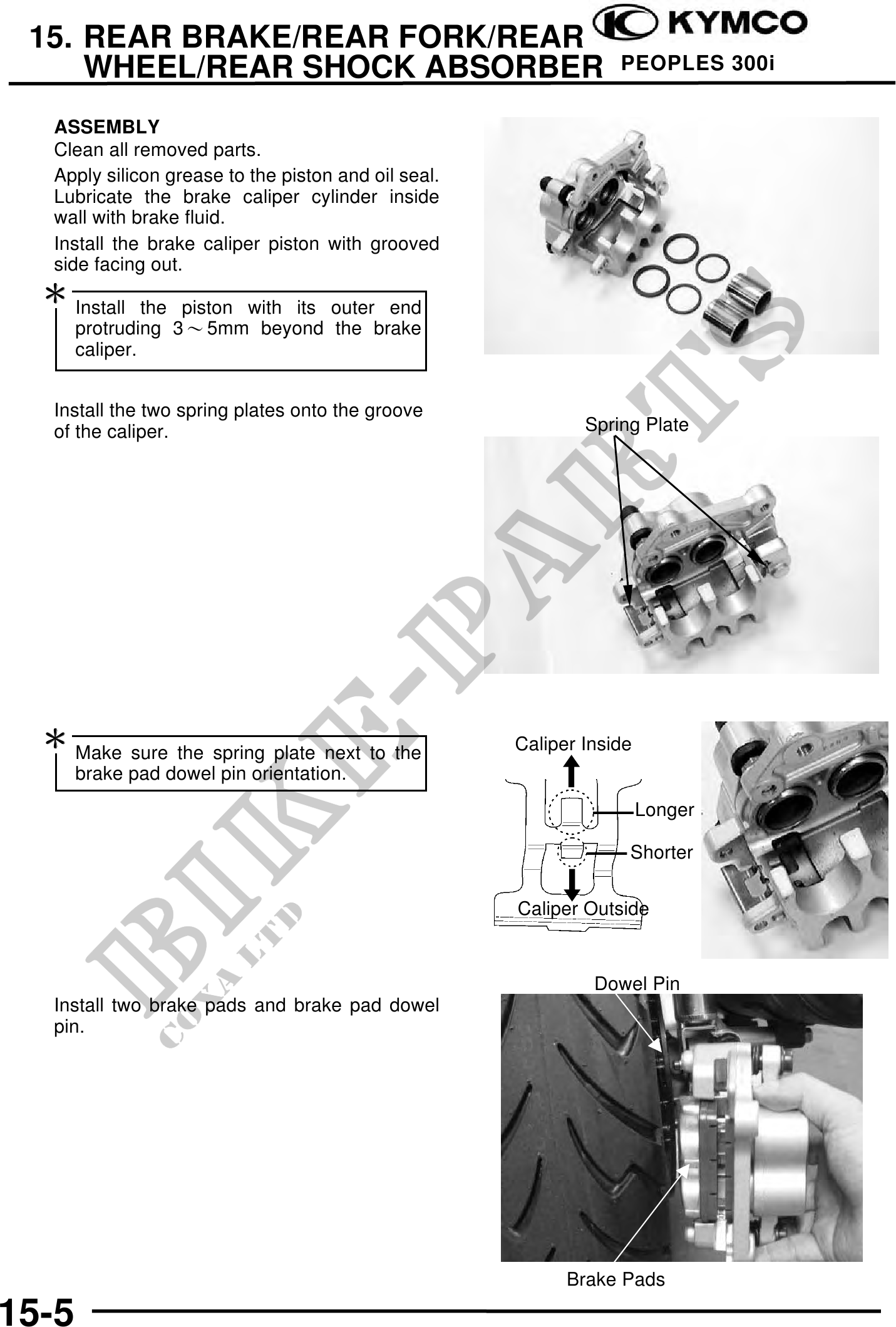

15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER PEOPLES 300i
ASSEMBLY
Clean all removed parts.
Apply silicon grease to the piston and oil seal.
Lubricate the brake caliper cylinder inside
wall with brake fluid.
Install the brake caliper piston with grooved
side facing out.
Install the piston with its outer end
protruding 3 5mm beyond the brake
caliper.
Install the two spring plates onto the groove
of the caliper. Spring Plate
Make sure the spring plate next to the Caliper Inside
brake pad dowel pin orientation.
Longer
Shorter
Caliper Outside
Dowel Pin
Install two brake pads and brake pad dowel
pin.
Brake Pads
15-5
