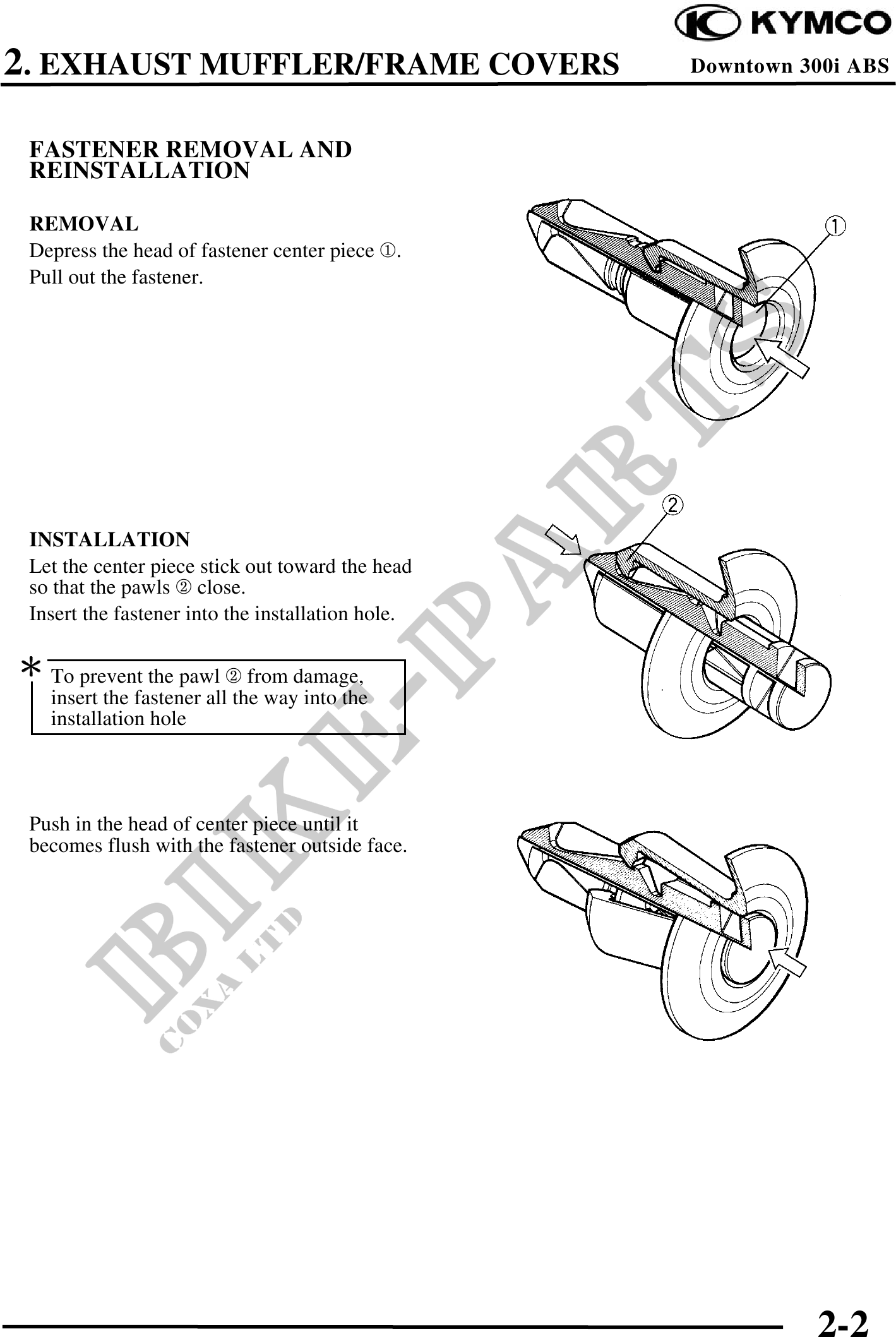

2. EXHAUST MUFFLER/FRAME COVERS Downtown 300i ABS
FASTENER REMOVAL AND
REINSTALLATION
REMOVAL
Depress the head of fastener center piece .
Pull out the fastener.
INSTALLATION
Let the center piece stick out toward the head
so that the pawls close.
Insert the fastener into the installation hole.
To prevent the pawl from damage,
insert the fastener all the way into the
installation hole
Push in the head of center piece until it
becomes flush with the fastener outside face.
2-2
