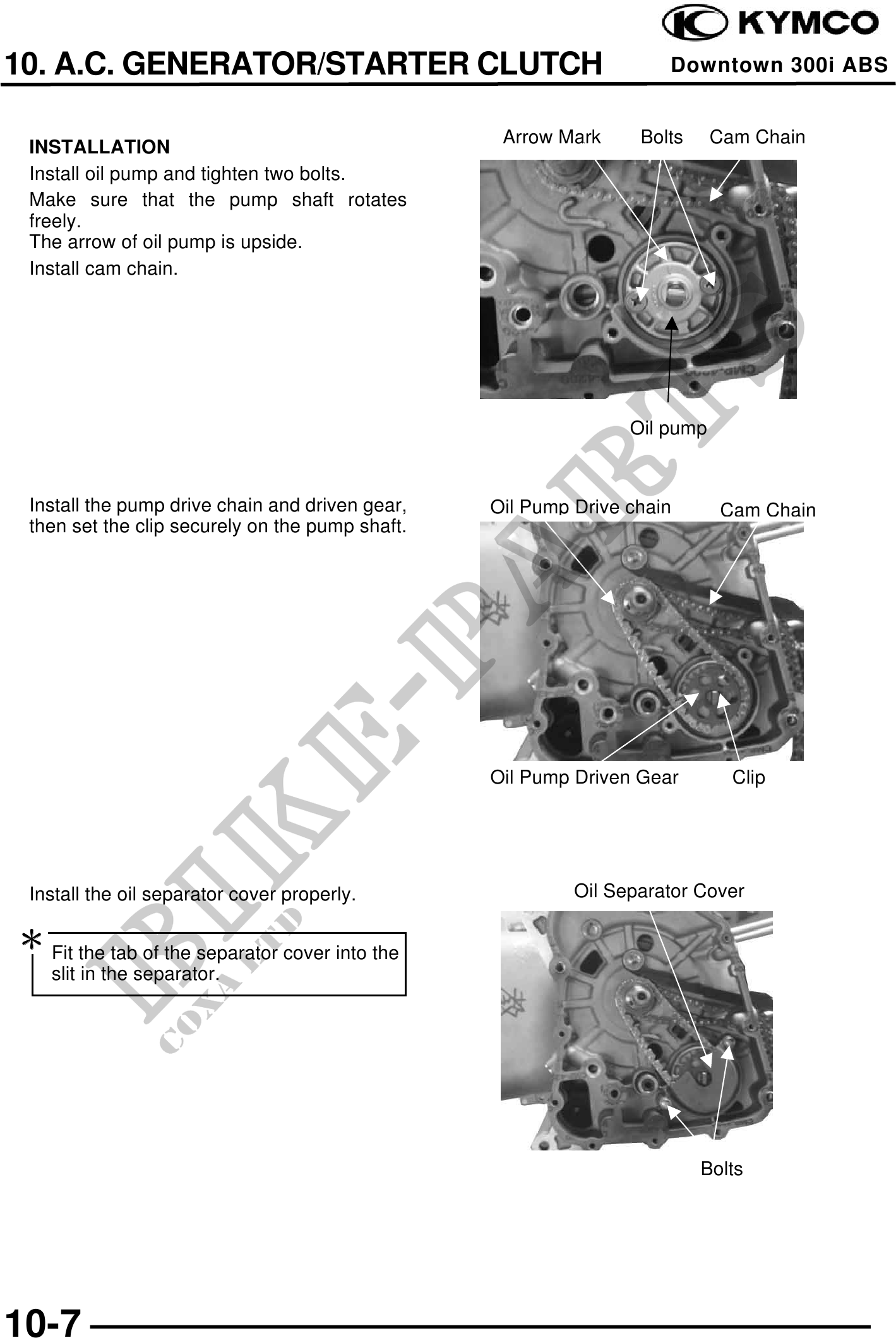

10. A.C. GENERATOR/STARTER CLUTCH Downtown 300i ABS
Arrow Mark Bolts Cam Chain
INSTALLATION
Install oil pump and tighten two bolts.
Make sure that the pump shaft rotates
freely.
The arrow of oil pump is upside.
Install cam chain.
Oil pump
Install the pump drive chain and driven gear, Oil Pump Drive chain Cam Chain
then set the clip securely on the pump shaft.
Oil Pump Driven Gear Clip
Install the oil separator cover properly. Oil Separator Cover
Fit the tab of the separator cover into the
slit in the separator.
Bolts
