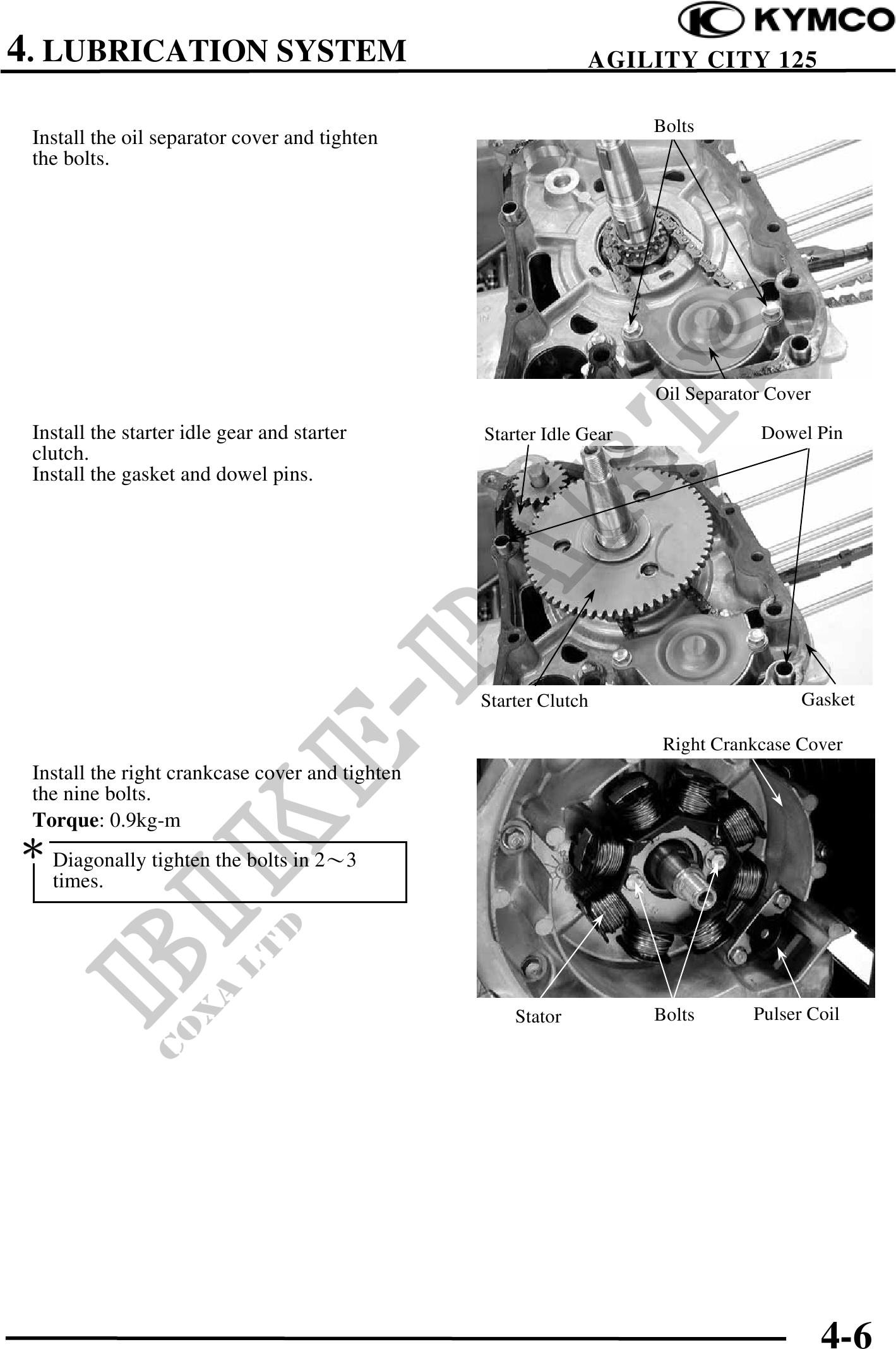

4. LUBRICATION SYSTEM AGILITY CITY 125
Bolts
Install the oil separator cover and tighten
the bolts.
Oil Separator Cover
Install the starter idle gear and starter Starter Idle Gear Dowel Pin
clutch.
Install the gasket and dowel pins.
Starter Clutch Gasket
Right Crankcase Cover
Install the right crankcase cover and tighten
the nine bolts.
Torque: 0.9kg-m
Diagonally tighten the bolts in 23
times.
Stator Bolts Pulser Coil
4-6
