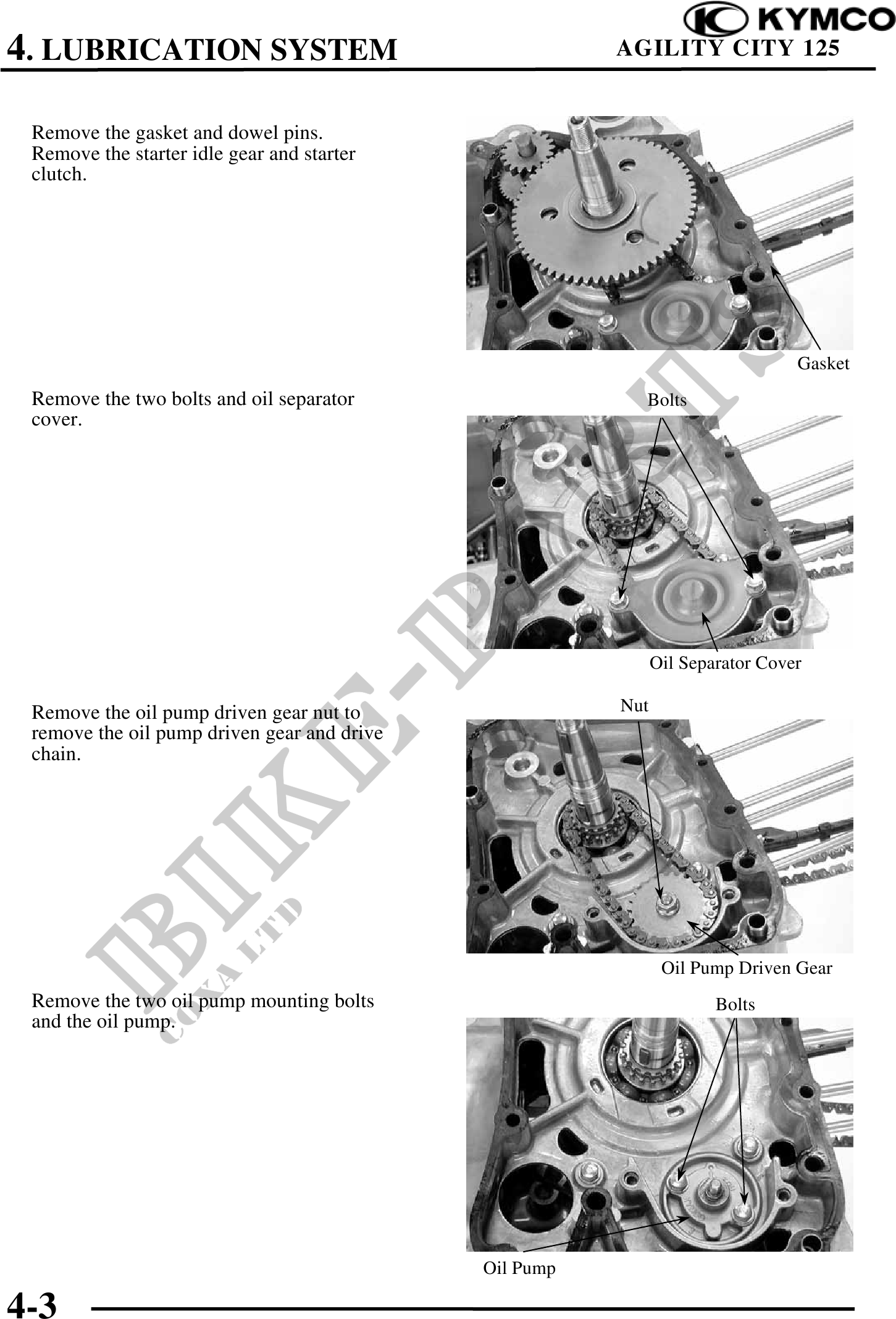

4. LUBRICATION SYSTEM AGILITY CITY 125
Remove the gasket and dowel pins.
Remove the starter idle gear and starter
clutch.
Gasket
Remove the two bolts and oil separator Bolts
cover.
Oil Separator Cover
Remove the oil pump driven gear nut to Nut
remove the oil pump driven gear and drive
chain.
Oil Pump Driven Gear
Remove the two oil pump mounting bolts Bolts
and the oil pump.
Oil Pump
4-3
