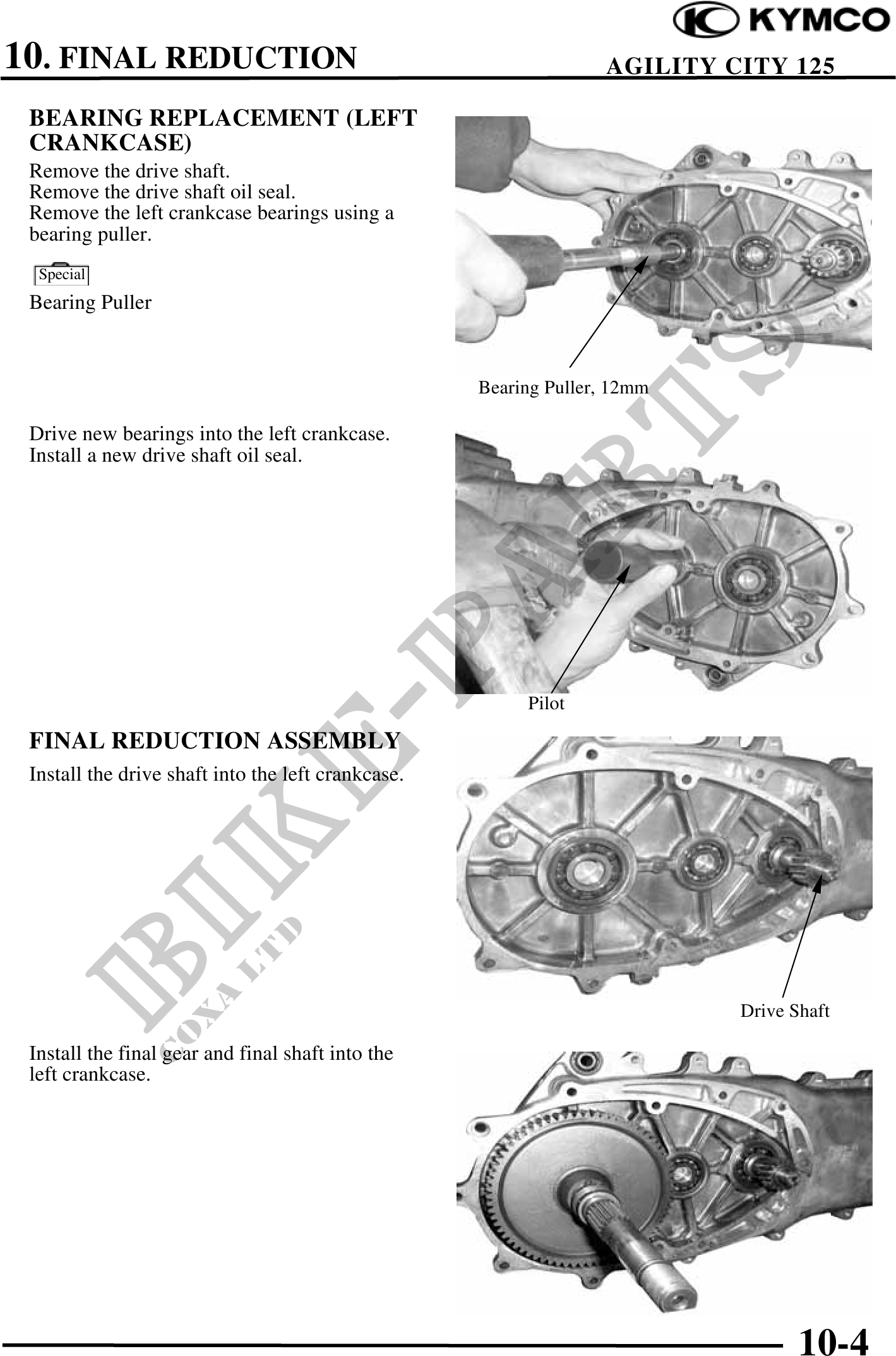

10. FINAL REDUCTION AGILITY CITY 125
BEARING REPLACEMENT (LEFT
CRANKCASE)
Remove the drive shaft.
Remove the drive shaft oil seal.
Remove the left crankcase bearings using a
bearing puller.
Special
Bearing Puller
Bearing Puller, 12mm
Drive new bearings into the left crankcase.
Install a new drive shaft oil seal.
Pilot
FINAL REDUCTION ASSEMBLY
Install the drive shaft into the left crankcase.
Drive Shaft
Install the final gear and final shaft into the
left crankcase.
10-4
