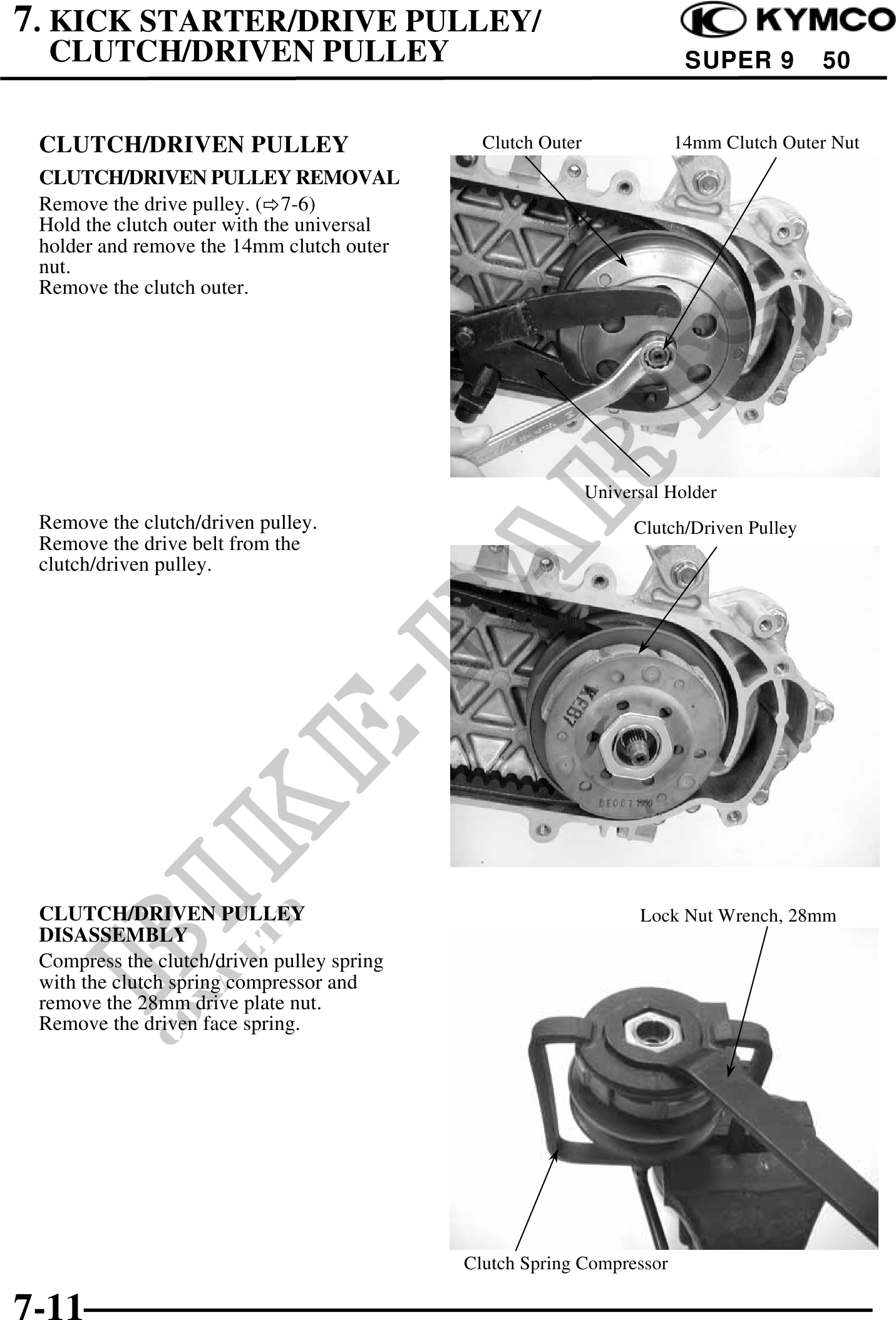

7. KICK STARTER/DRIVE PULLEY/ CLUTCH/DRIVEN PULLEY SUPER 9 50 CLUTCH/DRIVEN PULLEY Clutch Outer 14mm Clutch Outer Nut CLUTCH/DRIVEN PULLEY REMOVAL Remove the drive pulley. ( 7-6) Hold the clutch outer with the universal holder and remove the 14mm clutch outer nut. Remove the clutch outer. Universal Holder Remove the clutch/driven pulley. Clutch/Driven Pulley Remove the drive belt from the clutch/driven pulley. CLUTCH/DRIVEN PULLEY Lock Nut Wrench, 28mm DISASSEMBLY Compress the clutch/driven pulley spring with the clutch spring compressor and remove the 28mm drive plate nut. Remove the driven face spring. Clutch Spring Compressor 7-11
