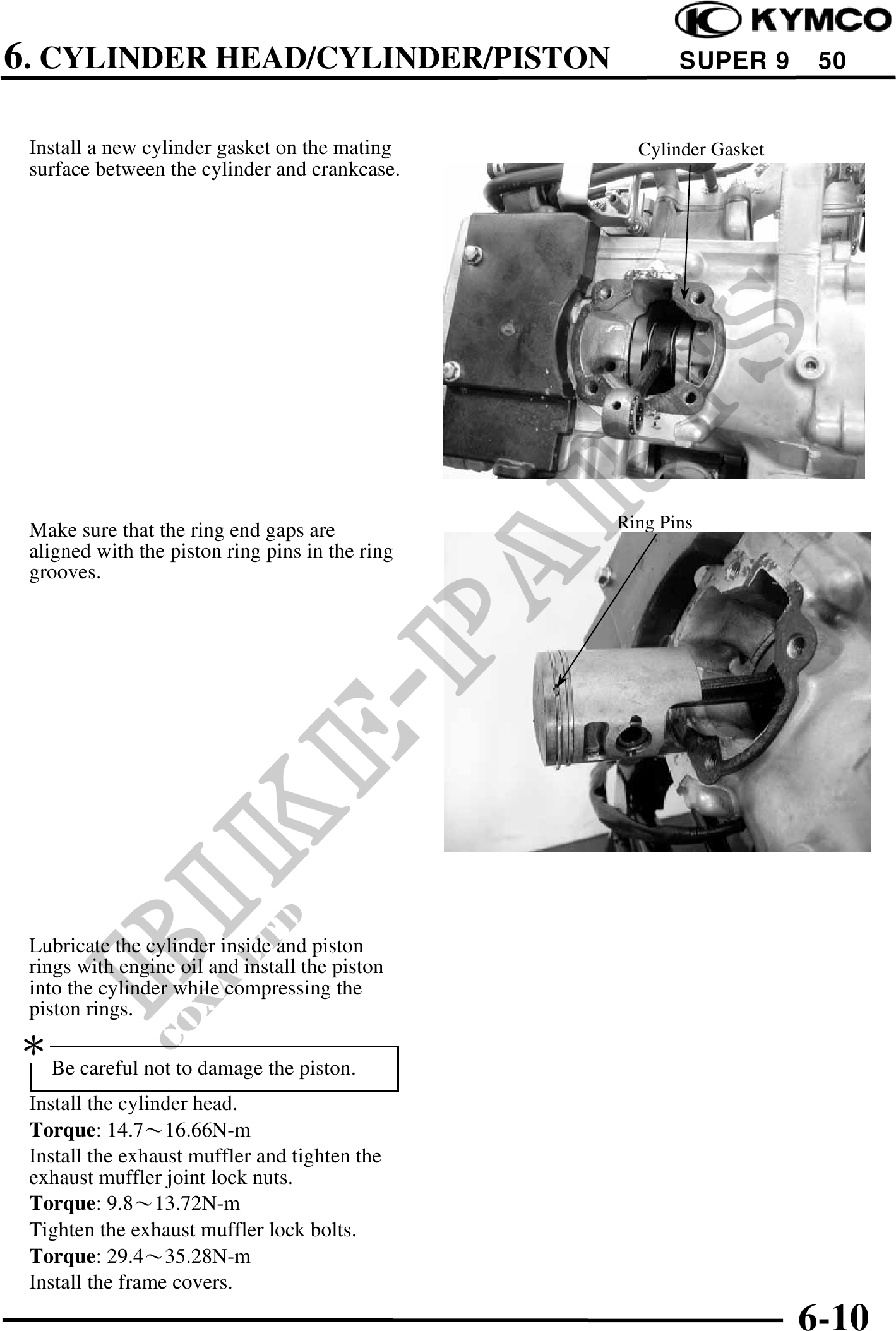

6. CYLINDER HEAD/CYLINDER/PISTON SUPER 9 50 Install a new cylinder gasket on the mating Cylinder Gasket surface between the cylinder and crankcase. Make sure that the ring end gaps are Ring Pins aligned with the piston ring pins in the ring grooves. Lubricate the cylinder inside and piston rings with engine oil and install the piston into the cylinder while compressing the piston rings. Be careful not to damage the piston. Install the cylinder head. Torque: 14.716.66N-m Install the exhaust muffler and tighten the exhaust muffler joint lock nuts. Torque: 9.813.72N-m Tighten the exhaust muffler lock bolts. Torque: 29.435.28N-m Install the frame covers. 6-10
