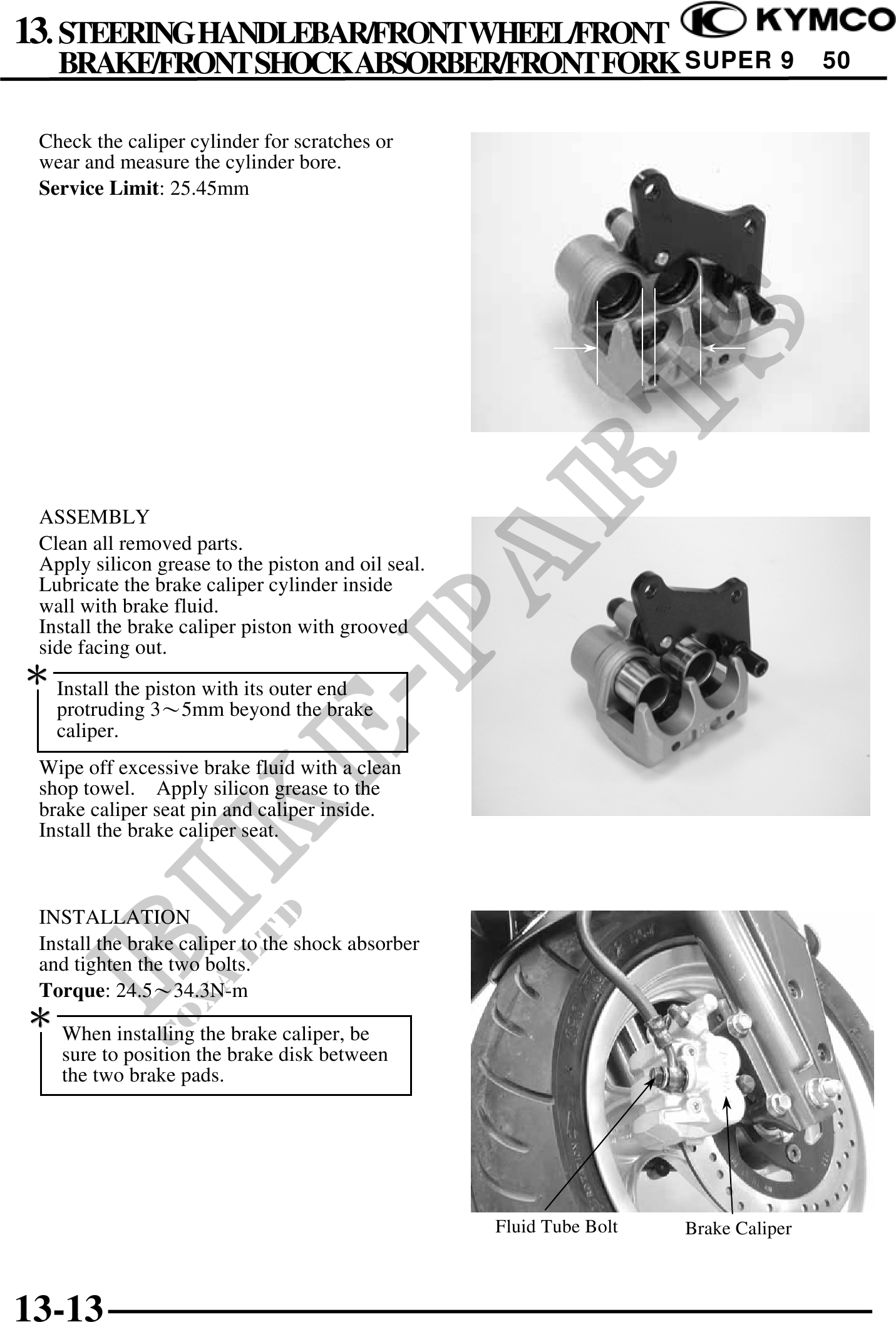

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50 Check the caliper cylinder for scratches or wear and measure the cylinder bore. Service Limit: 25.45mm ASSEMBLY Clean all removed parts. Apply silicon grease to the piston and oil seal. Lubricate the brake caliper cylinder inside wall with brake fluid. Install the brake caliper piston with grooved side facing out. Install the piston with its outer end protruding 35mm beyond the brake caliper. Wipe off excessive brake fluid with a clean shop towel. Apply silicon grease to the brake caliper seat pin and caliper inside. Install the brake caliper seat. INSTALLATION Install the brake caliper to the shock absorber and tighten the two bolts. Torque: 24.534.3N-m When installing the brake caliper, be sure to position the brake disk between the two brake pads. Fluid Tube Bolt Brake Caliper 13-13
