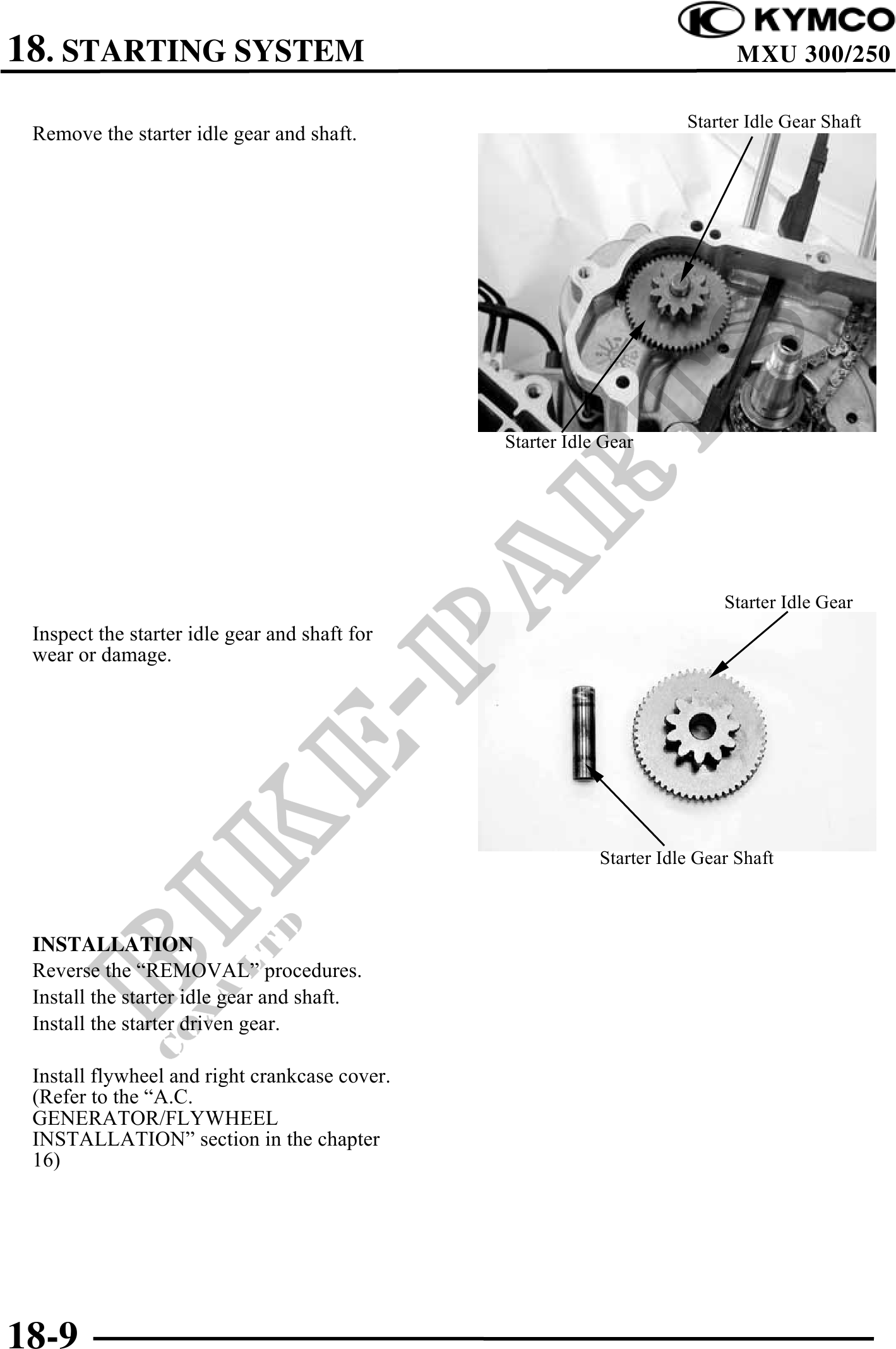

          18. STARTING SYSTEM                                                          MXU 300/250

                                                                      Starter Idle Gear Shaft
 Remove the starter idle gear and shaft.




                                               Starter Idle Gear




                                                                           Starter Idle Gear
 Inspect the starter idle gear and shaft for
 wear or damage.




                                                           Starter Idle Gear Shaft



 INSTALLATION
 Reverse the "REMOVAL" procedures.
 Install the starter idle gear and shaft.
 Install the starter driven gear.

 Install flywheel and right crankcase cover.
 (Refer to the "A.C.
 GENERATOR/FLYWHEEL
 INSTALLATION" section in the chapter
 16)




18-9
