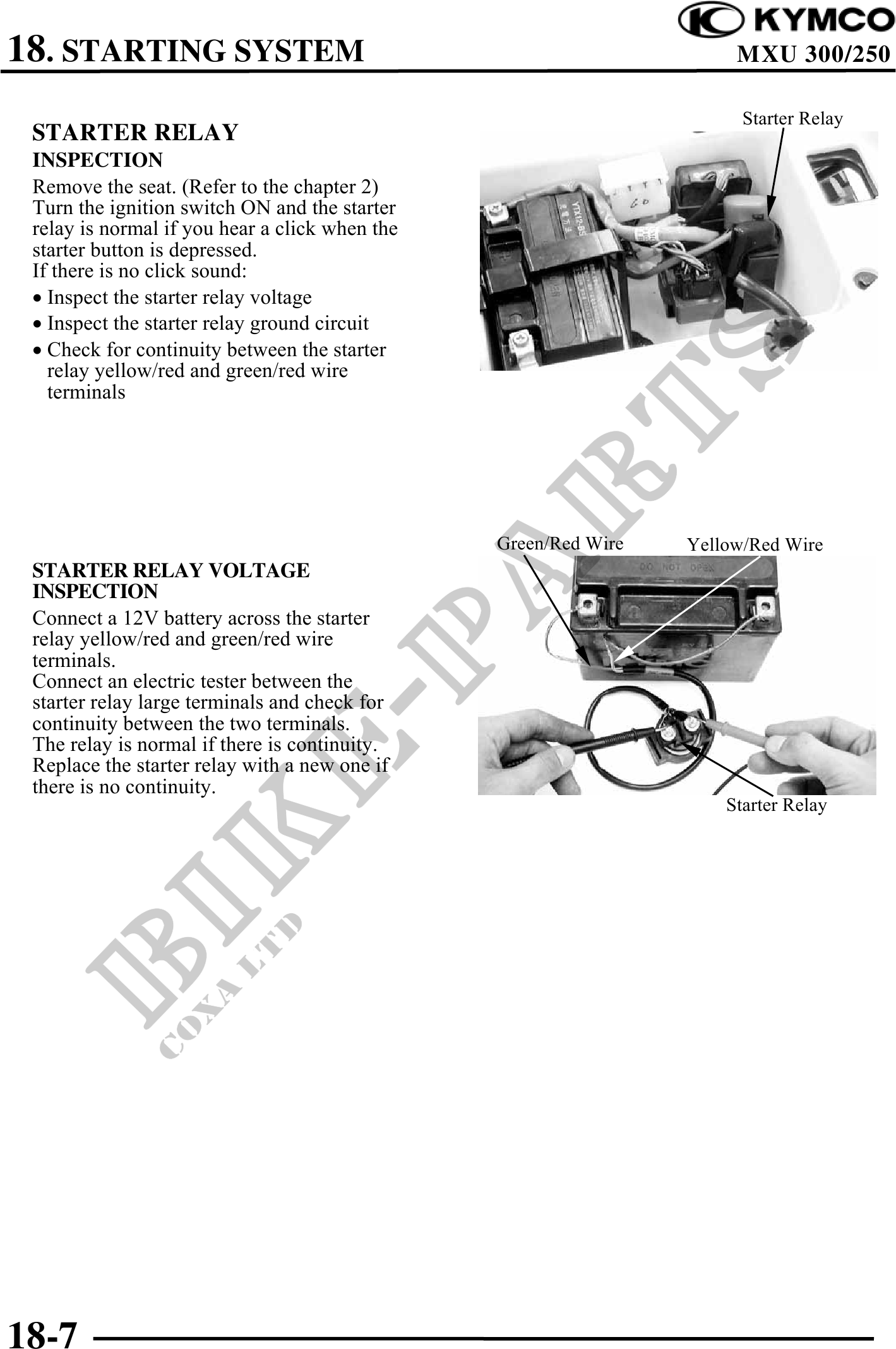

18. STARTING SYSTEM MXU 300/250
Starter Relay
STARTER RELAY
INSPECTION
Remove the seat. (Refer to the chapter 2)
Turn the ignition switch ON and the starter
relay is normal if you hear a click when the
starter button is depressed.
If there is no click sound:
· Inspect the starter relay voltage
· Inspect the starter relay ground circuit
· Check for continuity between the starter
relay yellow/red and green/red wire
terminals
Green/Red Wire Yellow/Red Wire
STARTER RELAY VOLTAGE
INSPECTION
Connect a 12V battery across the starter
relay yellow/red and green/red wire
terminals.
Connect an electric tester between the
starter relay large terminals and check for
continuity between the two terminals.
The relay is normal if there is continuity.
Replace the starter relay with a new one if
there is no continuity.
Starter Relay
18-7
