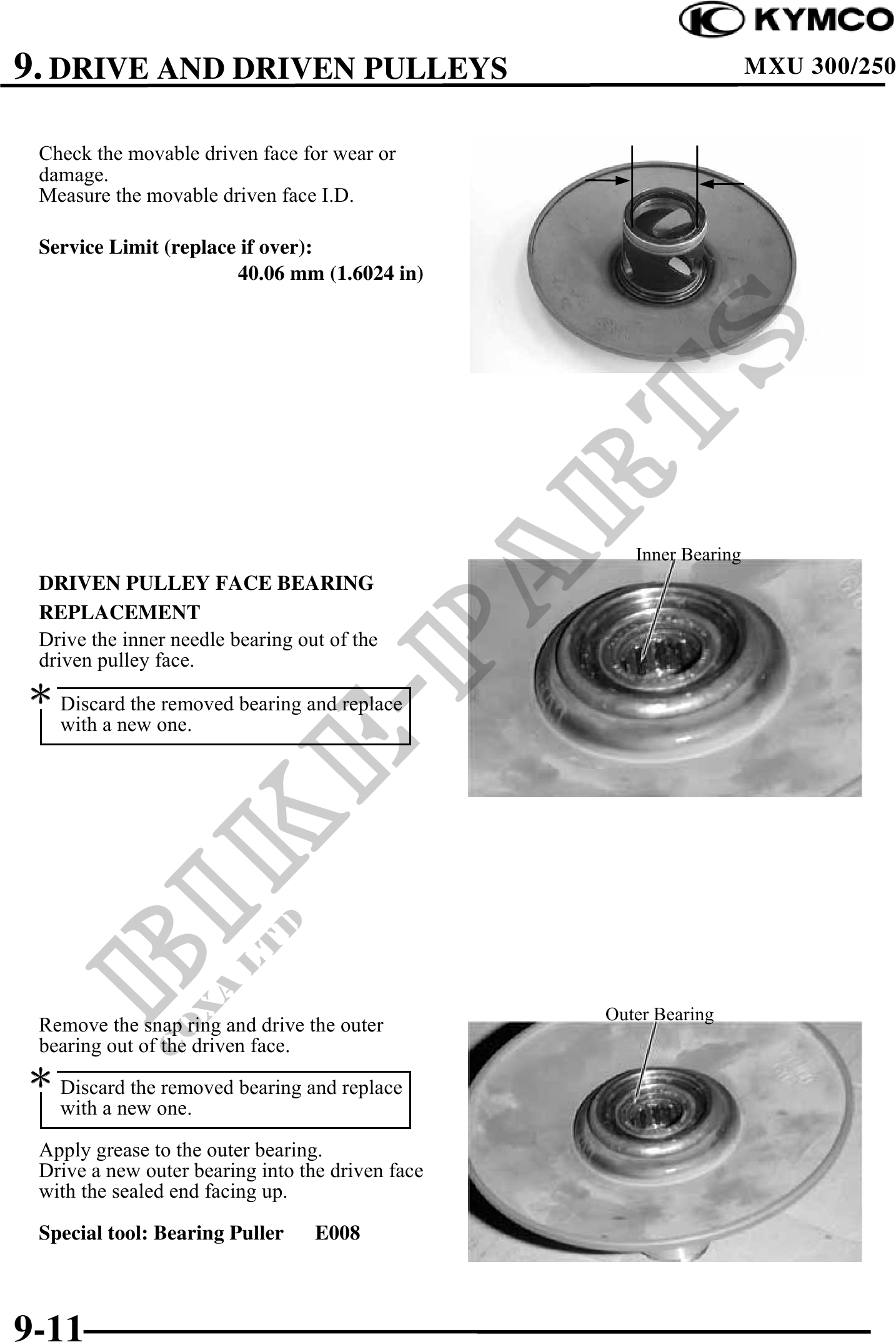

9. DRIVE AND DRIVEN PULLEYS MXU 300/250
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit (replace if over):
40.06 mm (1.6024 in)
Inner Bearing
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Discard the removed bearing and replace
with a new one.
Outer Bearing
Remove the snap ring and drive the outer
bearing out of the driven face.
Discard the removed bearing and replace
with a new one.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Special tool: Bearing Puller E008
9-11
