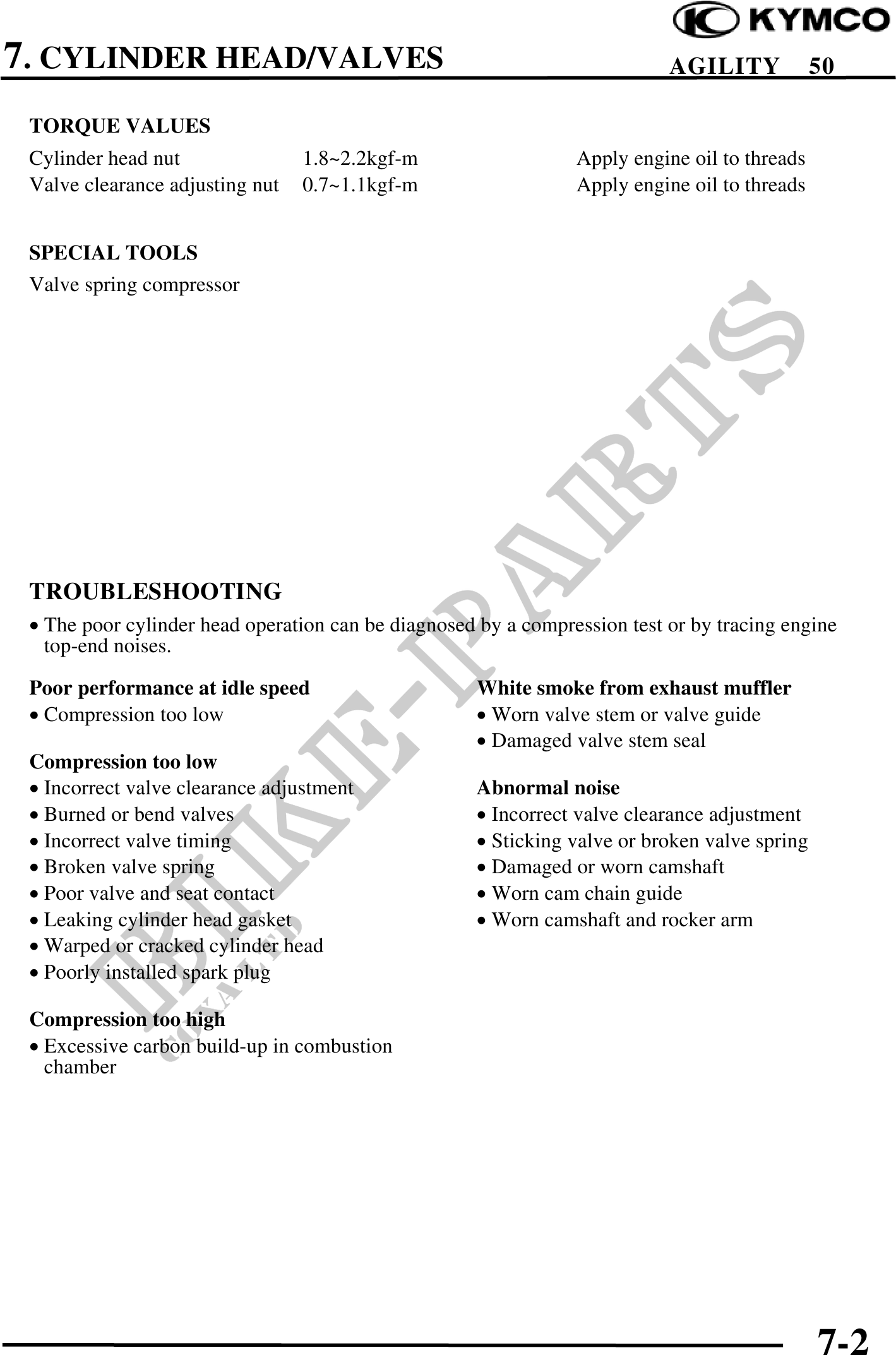

7. CYLINDER HEAD/VALVES AGILITY 50 TORQUE VALUES Cylinder head nut 1.8~2.2kgf-m Apply engine oil to threads Valve clearance adjusting nut 0.7~1.1kgf-m Apply engine oil to threads SPECIAL TOOLS Valve spring compressor TROUBLESHOOTING · The poor cylinder head operation can be diagnosed by a compression test or by tracing engine top-end noises. Poor performance at idle speed White smoke from exhaust muffler · Compression too low · Worn valve stem or valve guide · Damaged valve stem seal Compression too low · Incorrect valve clearance adjustment Abnormal noise · Burned or bend valves · Incorrect valve clearance adjustment · Incorrect valve timing · Sticking valve or broken valve spring · Broken valve spring · Damaged or worn camshaft · Poor valve and seat contact · Worn cam chain guide · Leaking cylinder head gasket · Worn camshaft and rocker arm · Warped or cracked cylinder head · Poorly installed spark plug Compression too high · Excessive carbon build-up in combustion chamber 7-2
