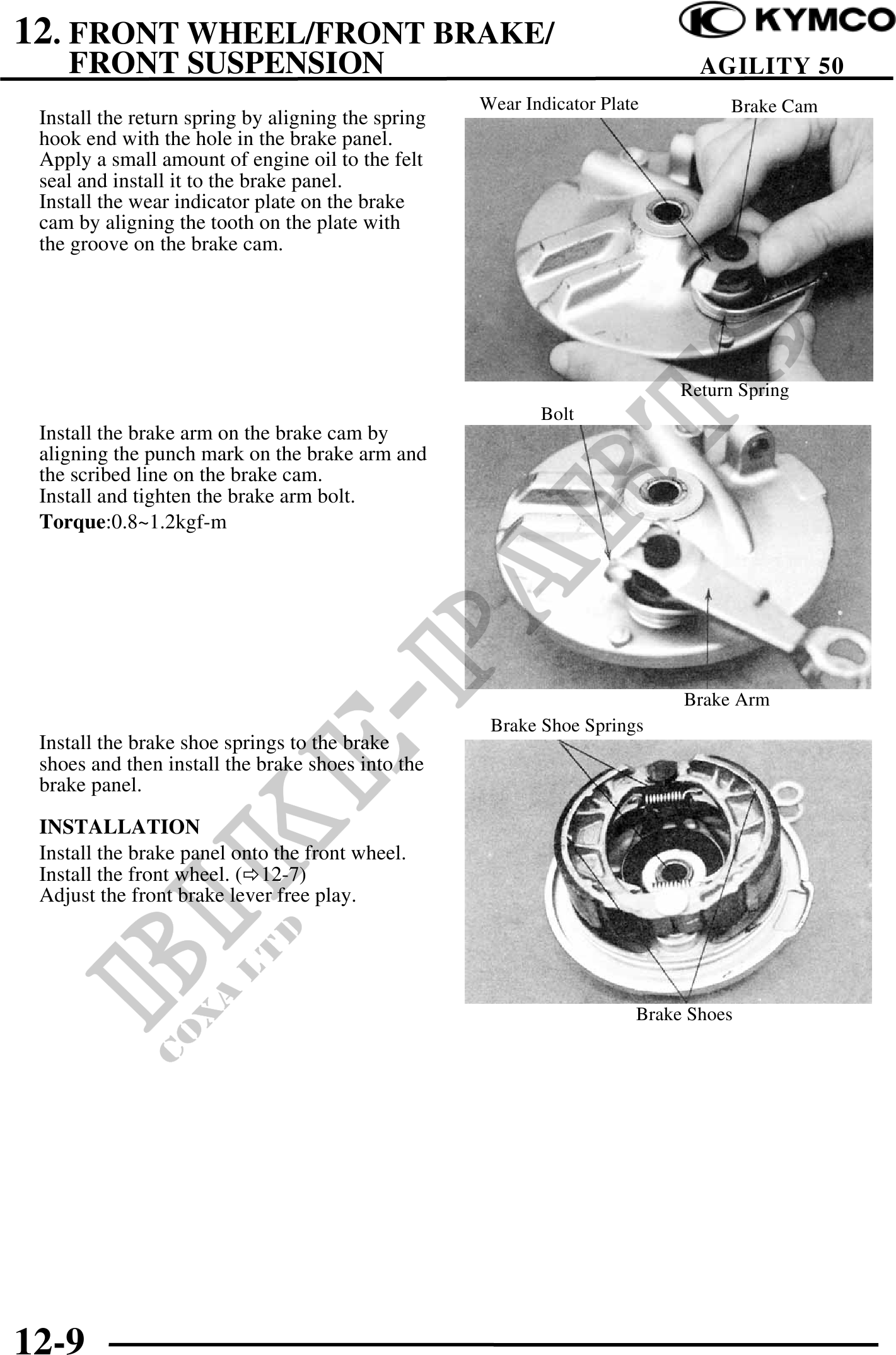

12. FRONT WHEEL/FRONT BRAKE/ FRONT SUSPENSION AGILITY 50 Wear Indicator Plate Brake Cam Install the return spring by aligning the spring hook end with the hole in the brake panel. Apply a small amount of engine oil to the felt seal and install it to the brake panel. Install the wear indicator plate on the brake cam by aligning the tooth on the plate with the groove on the brake cam. Return Spring Bolt Install the brake arm on the brake cam by aligning the punch mark on the brake arm and the scribed line on the brake cam. Install and tighten the brake arm bolt. Torque:0.8~1.2kgf-m Brake Arm Brake Shoe Springs Install the brake shoe springs to the brake shoes and then install the brake shoes into the brake panel. INSTALLATION Install the brake panel onto the front wheel. Install the front wheel. ( 12-7) Adjust the front brake lever free play. Brake Shoes 12-9
