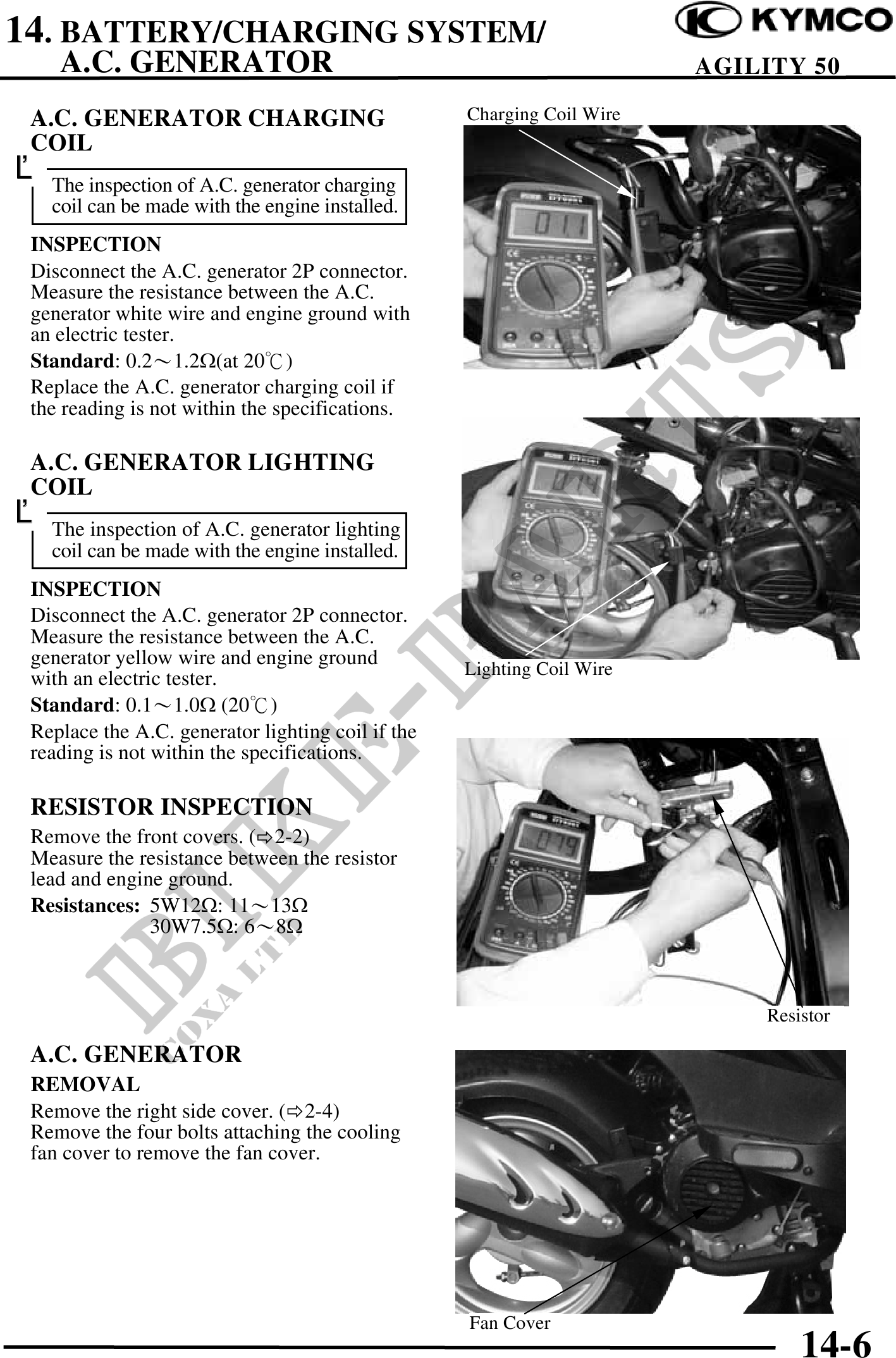

14. BATTERY/CHARGING SYSTEM/ A.C. GENERATOR AGILITY 50 A.C. GENERATOR CHARGING Charging Coil Wire COIL The inspection of A.C. generator charging coil can be made with the engine installed. INSPECTION Disconnect the A.C. generator 2P connector. Measure the resistance between the A.C. generator white wire and engine ground with an electric tester. Standard: 0.21.2(at 20) Replace the A.C. generator charging coil if the reading is not within the specifications. A.C. GENERATOR LIGHTING COIL The inspection of A.C. generator lighting coil can be made with the engine installed. INSPECTION Disconnect the A.C. generator 2P connector. Measure the resistance between the A.C. generator yellow wire and engine ground Lighting Coil Wire with an electric tester. Standard: 0.11.0 (20) Replace the A.C. generator lighting coil if the reading is not within the specifications. RESISTOR INSPECTION Remove the front covers. ( 2-2) Measure the resistance between the resistor lead and engine ground. Resistances: 5W12: 1113 30W7.5: 68 Resistor A.C. GENERATOR REMOVAL Remove the right side cover. ( 2-4) Remove the four bolts attaching the cooling fan cover to remove the fan cover. Fan Cover 14-6
