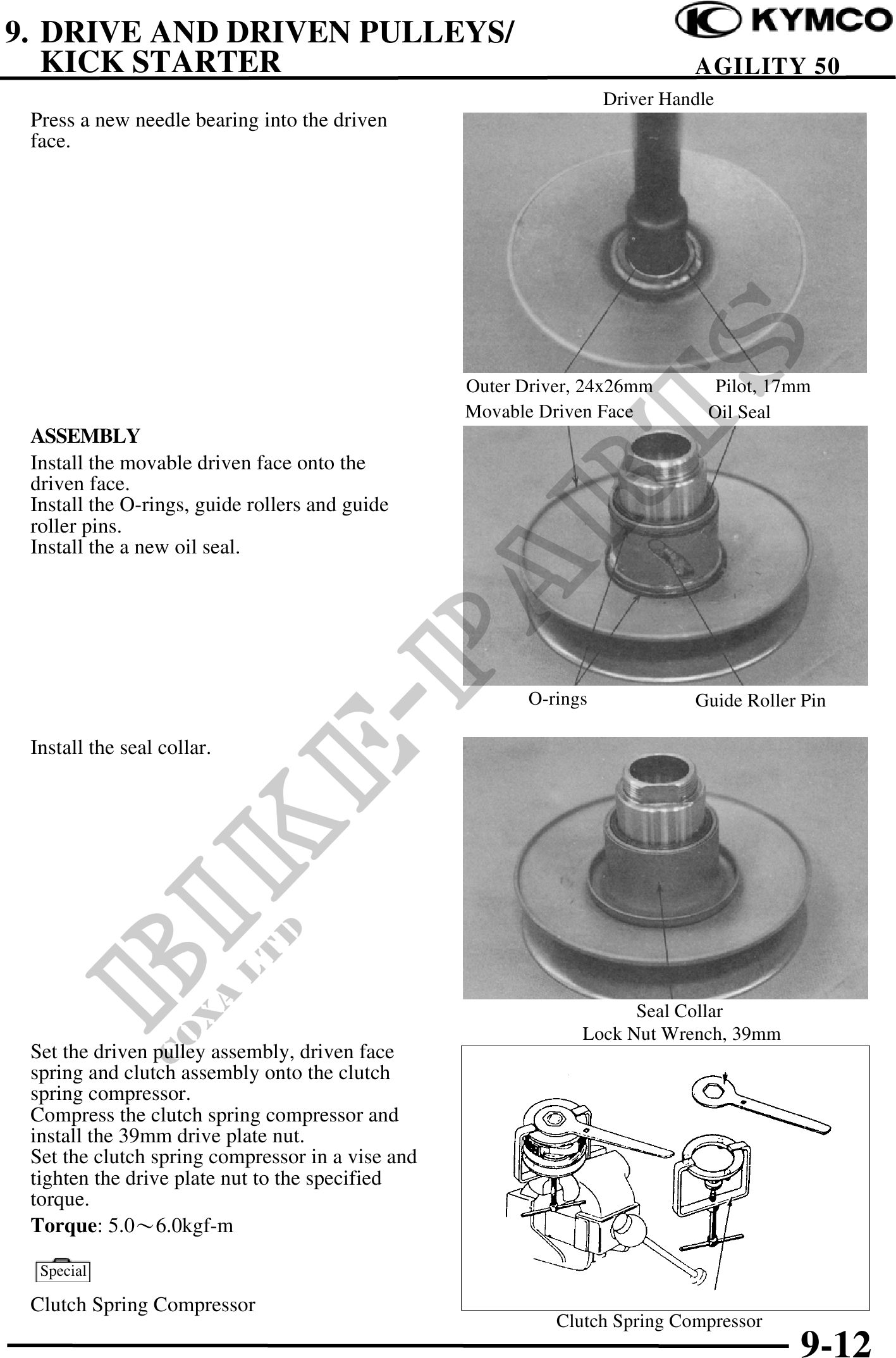

9. DRIVE AND DRIVEN PULLEYS/ KICK STARTER AGILITY 50 Driver Handle Press a new needle bearing into the driven face. Outer Driver, 24x26mm Pilot, 17mm Movable Driven Face Oil Seal ASSEMBLY Install the movable driven face onto the driven face. Install the O-rings, guide rollers and guide roller pins. Install the a new oil seal. O-rings Guide Roller Pin Install the seal collar. Seal Collar Lock Nut Wrench, 39mm Set the driven pulley assembly, driven face spring and clutch assembly onto the clutch spring compressor. Compress the clutch spring compressor and install the 39mm drive plate nut. Set the clutch spring compressor in a vise and tighten the drive plate nut to the specified torque. Torque: 5.06.0kgf-m Special Clutch Spring Compressor Clutch Spring Compressor 9-12
